Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)

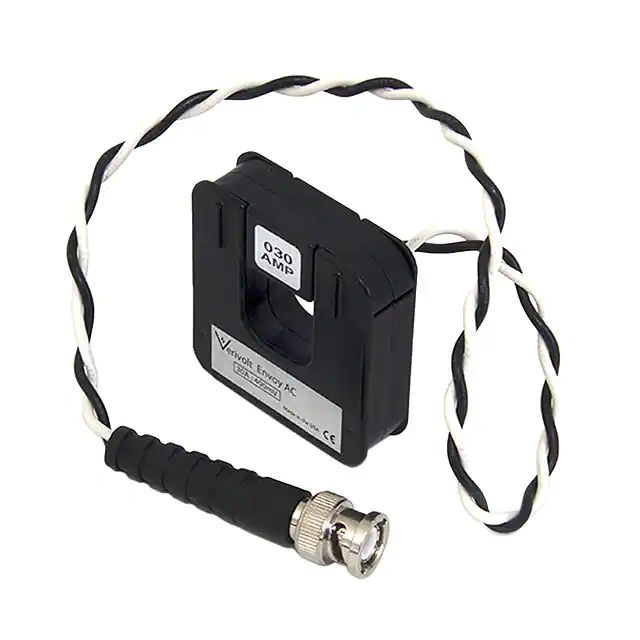

	ENVOY AC-OC (100A) CURR SENSE XFMR 100A IN-LINE Verivolt LLC	2,646	81.60	- + FFQ		Box	-	Active	20Hz ~ 30kHz	Non-Invasive (Split Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	-	-
	ENVOY AC-OC (200A) CURR SENSE XFMR 200A IN-LINE Verivolt LLC	4,495	81.60	- + FFQ		Box	-	Active	20Hz ~ 30kHz	Non-Invasive (Split Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	-	-
	ENVOY AC-OC (300A) CURR SENSE XFMR 300A IN-LINE Verivolt LLC	1,535	81.60	- + FFQ		Box	-	Active	20Hz ~ 30kHz	Non-Invasive (Split Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	-	-
	ENVOY AC-OC (400A) CURR SENSE XFMR 400A IN-LINE Verivolt LLC	1,194	81.60	- + FFQ		Box	-	Active	20Hz ~ 30kHz	Non-Invasive (Split Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	-	-
	ENVOY AC-OC (500A) CURR SENSE XFMR 500A IN-LINE Verivolt LLC	4,364	81.60	- + FFQ		Box	-	Active	20Hz ~ 30kHz	Non-Invasive (Split Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	-	-
	ENVOY AC-OC (600A) CURR SENSE XFMR 600A IN-LINE Verivolt LLC	1,238	81.60	- + FFQ		Box	-	Active	20Hz ~ 30kHz	Non-Invasive (Split Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	-	-
	ENVOY AC-OC (5A) CURR SENSE XFMR 5A IN-LINE Verivolt LLC	1,598	0.00	- + FFQ		Box	-	Obsolete	20Hz ~ 30kHz	Non-Invasive (Split Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	-	-
	ENVOY AC-OC (50A) CURR SENSE XFMR 50A IN-LINE Verivolt LLC	3,128	0.00	- + FFQ		Box	-	Obsolete	20Hz ~ 30kHz	Non-Invasive (Split Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	-	-

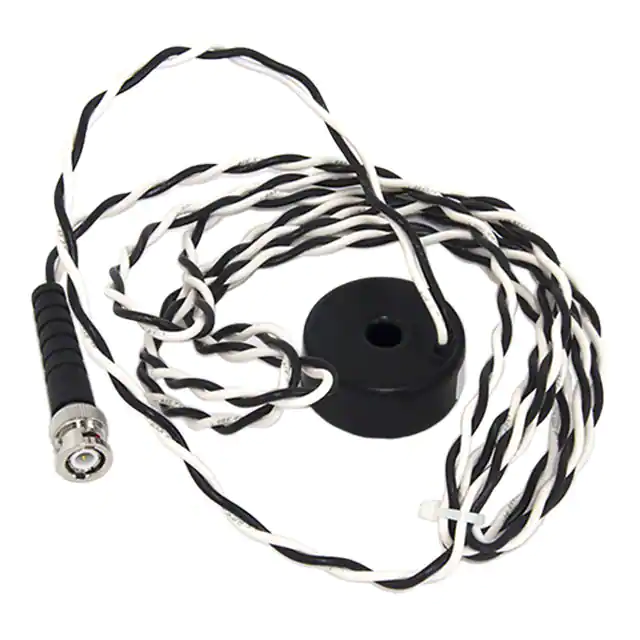

	ENVOY AC (1A) CURR SENSE XFMR 1A IN-LINE Verivolt LLC	3,448	0.00	- + FFQ		Box	-	Obsolete	2Hz ~ 50kHz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	-	-
	ENVOY AC (2A) CURR SENSE XFMR 2A IN-LINE Verivolt LLC	3,855	0.00	- + FFQ		Box	-	Obsolete	2Hz ~ 50kHz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	-	-
	ENVOY AC (3A) CURR SENSE XFMR 3A IN-LINE Verivolt LLC	1,534	0.00	- + FFQ		Box	-	Obsolete	2Hz ~ 50kHz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	-	-
	ENVOY AC (5A) CURR SENSE XFMR 5A IN-LINE Verivolt LLC	2,306	0.00	- + FFQ		Box	-	Obsolete	2Hz ~ 50kHz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	-	-
	ENVOY AC (10A) CURR SENSE XFMR 10A IN-LINE Verivolt LLC	2,926	0.00	- + FFQ		Box	-	Obsolete	2Hz ~ 50kHz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	-	-
	ENVOY AC (25A) CURR SENSE XFMR 25A IN-LINE Verivolt LLC	3,714	0.00	- + FFQ		Box	-	Obsolete	2Hz ~ 50kHz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	-	-
	ENVOY AC (30A) CURR SENSE XFMR 30A IN-LINE Verivolt LLC	2,391	0.00	- + FFQ		Box	-	Obsolete	2Hz ~ 50kHz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	-	-
	ENVOY AC (50A) CURR SENSE XFMR 50A IN-LINE Verivolt LLC	3,613	0.00	- + FFQ		Box	-	Obsolete	2Hz ~ 50kHz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	-	-
	ENVOY AC (60A) CURR SENSE XFMR 60A IN-LINE Verivolt LLC	3,493	0.00	- + FFQ		Box	-	Obsolete	2Hz ~ 50kHz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	-	-
	ENVOY AC (70A) CURR SENSE XFMR 70A IN-LINE Verivolt LLC	2,625	0.00	- + FFQ		Box	-	Obsolete	2Hz ~ 50kHz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	-	-
	ENVOY AC (100A) CURR SENSE XFMR 100A IN-LINE Verivolt LLC	2,048	0.00	- + FFQ		Box	-	Obsolete	2Hz ~ 50kHz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	-	-
