Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)
CR8320-1600 CURR SENSE XFMR 10A T/H CR Magnetics Inc.	3,692	10.21	- + FFQ	Datasheet	Bulk	CR8300	Active	20Hz ~ 1kHz	Non-Invasive (Solid Core)	10 A	-	-	-	1600:1	95Ohm	-	Through Hole	0.764 L x 0.323 W (19.40mm x 8.20mm)	0.768 (19.50mm)
CR8410-1000 CURR SENSE XFMR 20A IN-LINE CR Magnetics Inc.	3,821	11.40	- + FFQ	Datasheet	Bulk	CR8400	Active	20Hz ~ 1kHz	Non-Invasive (Solid Core)	20 A	-	-	-	1000:1	41Ohm	-	Free Hanging (In-Line)	1.094 L x 0.866 W (27.80mm x 22.00mm)	0.323 (8.20mm)
CR8348-1000 CURR SENSE XFMR 20A T/H CR Magnetics Inc.	3,031	11.71	- + FFQ	Datasheet	Bulk	CR8300	Active	20Hz ~ 1kHz	Non-Invasive (Solid Core)	20 A	-	-	-	1000:1	24Ohm	-	Through Hole	0.925 L x 0.433 W (23.50mm x 11.00mm)	0.984 (25.00mm)
CR8348-2000 CURR SENSE XFMR 50A T/H CR Magnetics Inc.	2,694	12.55	- + FFQ	Datasheet	Bulk	CR8300	Active	20Hz ~ 1kHz	Non-Invasive (Solid Core)	50 A	-	-	-	2000:1	106Ohm	-	Through Hole	0.925 L x 0.433 W (23.50mm x 11.00mm)	0.984 (25.00mm)
CR8349-1500 CURR SENSE XFMR 75A T/H CR Magnetics Inc.	3,376	13.38	- + FFQ	Datasheet	Bulk	CR8300	Active	20Hz ~ 200kHz	Non-Invasive (Solid Core)	75 A	-	-	-	1500:1	80Ohm	-	Through Hole	1.024 L x 0.670 W (26.00mm x 17.00mm)	1.102 (28.00mm)
CR8348-2500-N CURR SENSE XFMR 40A T/H CR Magnetics Inc.	3,800	13.98	- + FFQ	Datasheet	Bulk	CR8300	Active	20Hz ~ 1kHz	Non-Invasive (Solid Core)	40 A	-	-	-	2500:1	134Ohm	-	Through Hole	0.925 L x 0.433 W (23.50mm x 11.00mm)	0.984 (25.00mm)
CR8448-2500-N CURR SENSE XFMR 40A IN-LINE CR Magnetics Inc.	3,873	13.98	- + FFQ	Datasheet	Bulk	CR8400	Active	20Hz ~ 1kHz	Non-Invasive (Solid Core)	40 A	-	-	-	2500:1	134Ohm	-	Free Hanging (In-Line)	1.160 L x 0.922 W (29.46mm x 23.42mm)	0.435 (11.05mm)
CR8349-2500-N CURR SENSE XFMR 75A T/H CR Magnetics Inc.	2,963	15.67	- + FFQ	Datasheet	Bulk	CR8300	Active	20Hz ~ 1kHz	Non-Invasive (Solid Core)	75 A	-	-	-	2500:1	190Ohm	-	Through Hole	1.024 L x 0.670 W (26.00mm x 17.00mm)	1.102 (28.00mm)
CR2550-R CURR SENSE XFMR IN-LINE CR Magnetics Inc.	2,198	17.67	- + FFQ	Datasheet	Bulk	CR2550	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	1.094 L x 0.866 W (27.80mm x 22.00mm)	-
CR8420-1000 CURR SENSE XFMR 50A IN-LINE CR Magnetics Inc.	1,103	16.33	- + FFQ	Datasheet	Bulk	CR8400	Active	20Hz ~ 1kHz	Non-Invasive (Solid Core)	50 A	-	-	-	1000:1	22Ohm	-	Free Hanging (In-Line)	1.417 L x 1.181 W (36.00mm x 30.00mm)	0.362 (9.20mm)
CR8349-1000-N CURR SENSE XFMR 50A T/H CR Magnetics Inc.	1,919	16.65	- + FFQ	Datasheet	Bulk	CR8300	Active	20Hz ~ 1kHz	Non-Invasive (Solid Core)	50 A	-	-	-	1000:1	32Ohm	-	Through Hole	1.024 L x 0.670 W (26.00mm x 17.00mm)	1.102 (28.00mm)
CR3110-3000 CURR SENSE XFMR IN-LINE CR Magnetics Inc.	1,289	17.58	- + FFQ	Datasheet	Bulk	CR3100	Active	50/60Hz	Non-Invasive (Split Core)	-	-	-	-	-	515mOhm	-	Free Hanging (In-Line)	1.004 L x 1.043 W (25.50mm x 26.50mm)	1.575 (40.00mm)
CR8420-1000-G CURR SENSE XFMR 20A IN-LINE CR Magnetics Inc.	3,688	18.26	- + FFQ	Datasheet	Bulk	CR8400	Active	20Hz ~ 1kHz	Non-Invasive (Solid Core)	20 A	-	-	-	1000:1	44Ohm	-	Free Hanging (In-Line)	1.417 L x 1.181 W (36.00mm x 30.00mm)	0.362 (9.20mm)
CR8350-2500-N CURR SENSE XFMR 100A T/H CR Magnetics Inc.	1,575	20.96	- + FFQ	Datasheet	Bulk	CR8300	Active	20Hz ~ 1kHz	Non-Invasive (Solid Core)	100 A	-	-	-	2500:1	57Ohm	-	Through Hole	1.476 L x 0.551 W (37.50mm x 14.00mm)	1.535 (39.00mm)
CR8459-2000-N CURR SENSE XFMR 200A IN-LINE CR Magnetics Inc.	3,810	26.95	- + FFQ	Datasheet	Bulk	CR8400	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	200 A	-	-	-	2000:1	74Ohm	-	Free Hanging (In-Line)	2.362 L x 1.890 W (60.00mm x 48.00mm)	0.689 (17.50mm)
CR8401-1000-G CURR SENSE XFMR 4A IN-LINE CR Magnetics Inc.	4,750	13.19	- + FFQ	Datasheet	Bulk	CR8400	Active	20Hz ~ 1kHz	Non-Invasive (Solid Core)	4 A	-	-	-	1000:1	49Ohm	-	Free Hanging (In-Line)	0.880 L x 0.690 W (22.35mm x 17.53mm)	0.325 (8.26mm)
CR2550-G CURR SENSE XFMR IN-LINE CR Magnetics Inc.	3,734	18.96	- + FFQ	Datasheet	Bulk	CR2550	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	1.094 L x 0.866 W (27.80mm x 22.00mm)	-
CR8350-2000 CURR SENSE XFMR 200A T/H CR Magnetics Inc.	3,421	16.57	- + FFQ	Datasheet	Bulk	CR8300	Active	20Hz ~ 1kHz	Non-Invasive (Solid Core)	200 A	-	-	-	2000:1	73Ohm	-	Through Hole	1.476 L x 0.551 W (37.50mm x 14.00mm)	1.535 (39.00mm)

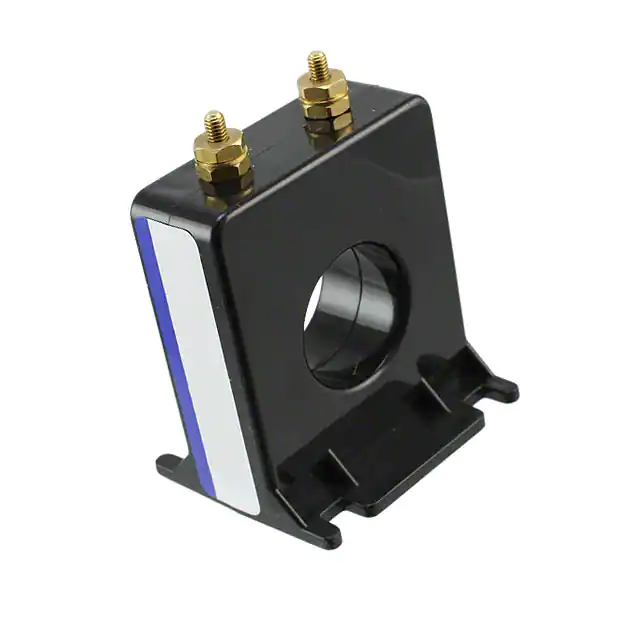

CR2SFT-101 CURR SENSE XFMR 100A T/H CR Magnetics Inc.	2,875	18.89	- + FFQ	Datasheet	Bulk	CR2	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	100 A	-	-	-	100:5	-	-	Chassis Mount	2.681 L x 2.000 W (68.10mm x 44.50mm)	2.681 (68.10mm)

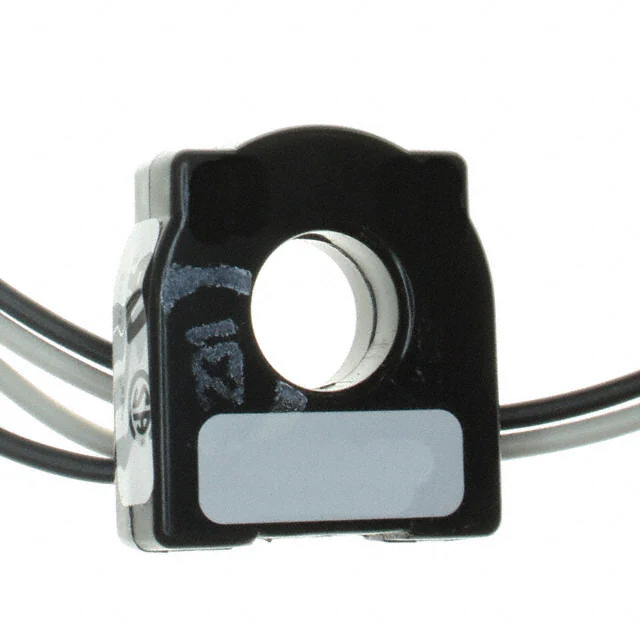

MODEL 18-600 CURR SENSE XFMR CR Magnetics Inc.	2,544	47.04	- + FFQ	Datasheet	Bulk	PH	Active	50Hz ~ 1kHz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	-	1.331 L x 0.520 W (33.80mm x 13.20mm)	1.488 (37.80mm)
