Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)

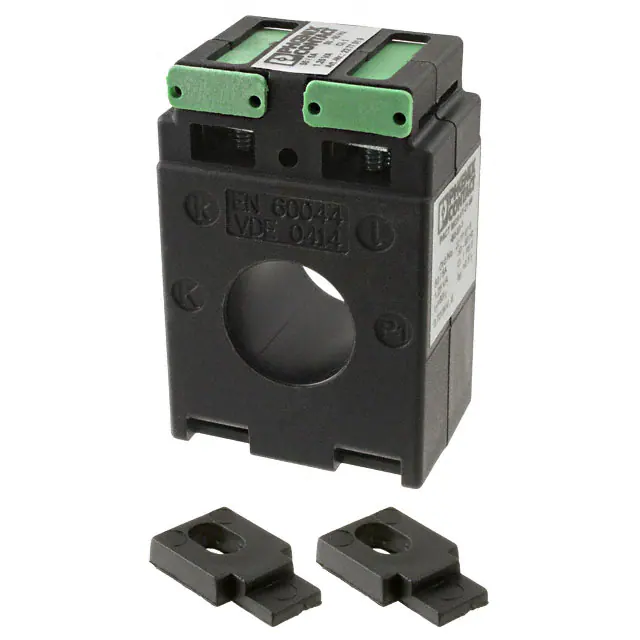

2277019 CURR SENSE XFMR 1:10 50A DIN RL Phoenix Contact	3,095	58.20	- + FFQ	Datasheet	Bulk	PACT	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	50 A	-	-	-	-	-	-	DIN Rail	1.732 L x 1.181 W (44.00mm x 30.00mm)	2.598 (66.00mm)

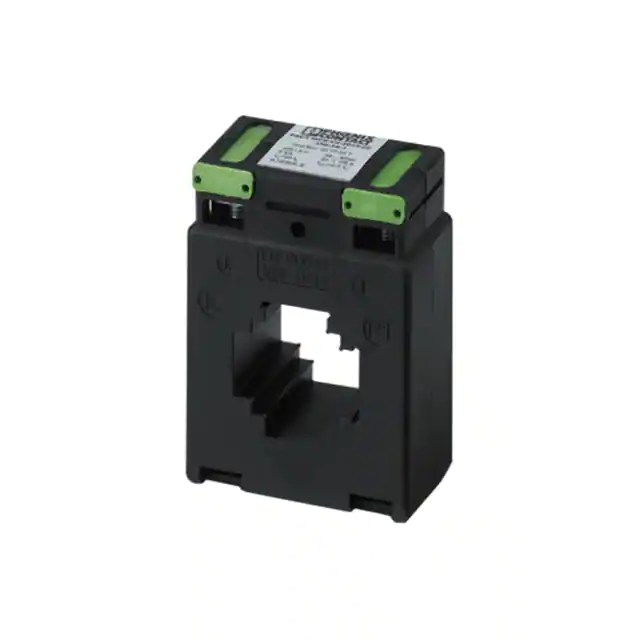

2277077 CURR SENSE XFMR 1:30 150A DIN RL Phoenix Contact	1,239	51.24	- + FFQ	Datasheet	Bulk	PACT	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	150 A	-	-	1:30	-	-	-	DIN Rail	2.362 L x 1.181 W (60.00mm x 30.00mm)	3.150 (80.00mm)

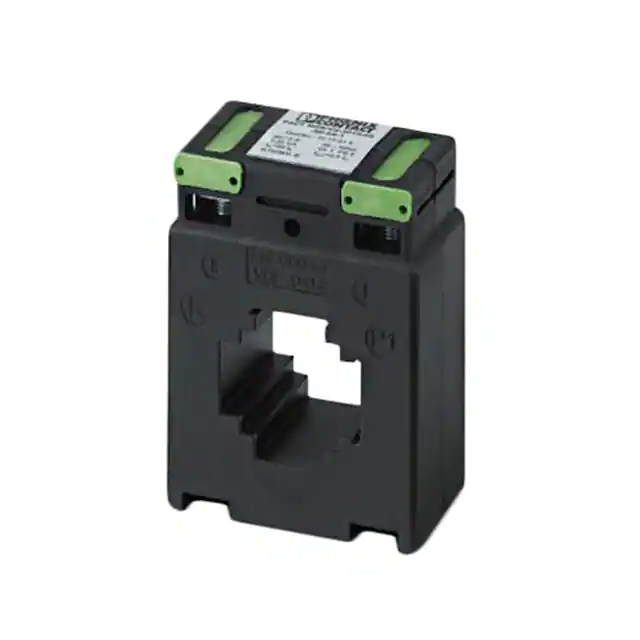

2277815 CURR SENSE XFMR 60A DIN RAIL Phoenix Contact	4,653	51.24	- + FFQ	Datasheet	Bulk	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	60 A	-	-	-	-	-	-	DIN Rail	2.362 L x 1.181 W (60.00mm x 30.00mm)	3.150 (80.00mm)

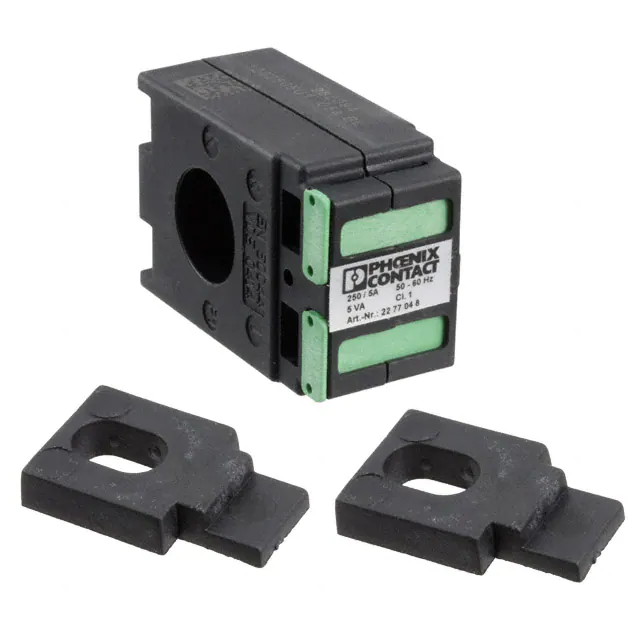

2277048 CURR SENSE XFMR 250A DIN RAIL Phoenix Contact	2,547	58.20	- + FFQ	Datasheet	Bulk	PACT	Active	50/60Hz	Non-Invasive (Solid Core)	250 A	-	-	-	200:5	-	-	DIN Rail	1.732 L x 1.181 W (44.00mm x 30.00mm)	2.598 (66.00mm)

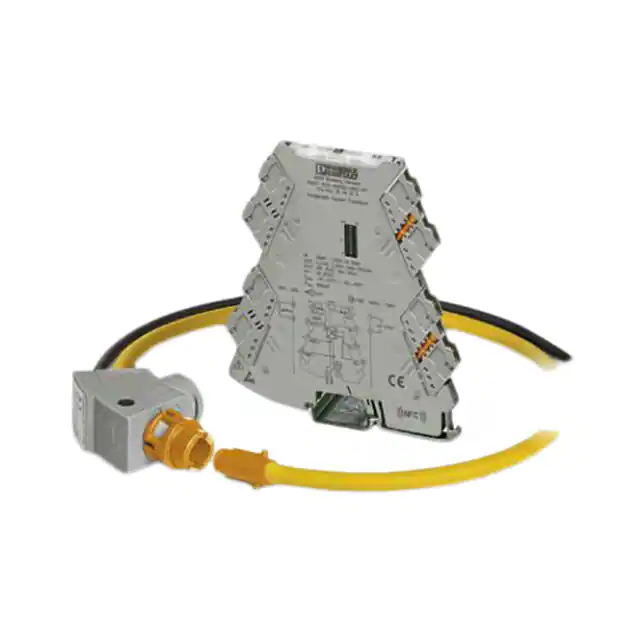

2906231 CURR SENSE XFMR 4000A DIN RAIL Phoenix Contact	883	589.77	- + FFQ	Datasheet	Bulk	-	Active	16Hz ~ 1kHz	Non-Invasive (Split Core)	4000 A	-	-	-	-	-	-	DIN Rail	4.744 L x 0.244 W (120.50mm x 6.20mm)	4.350 (110.50mm)

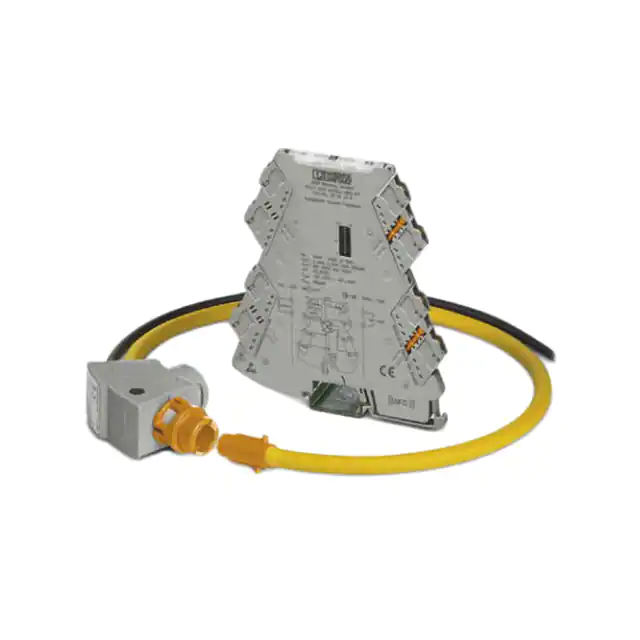

2906232 CURR SENSE XFMR 4000A DIN RAIL Phoenix Contact	814	589.77	- + FFQ	Datasheet	Bulk	-	Active	16Hz ~ 1kHz	Non-Invasive (Split Core)	4000 A	-	-	-	-	-	-	DIN Rail	4.744 L x 0.244 W (120.50mm x 6.20mm)	4.350 (110.50mm)

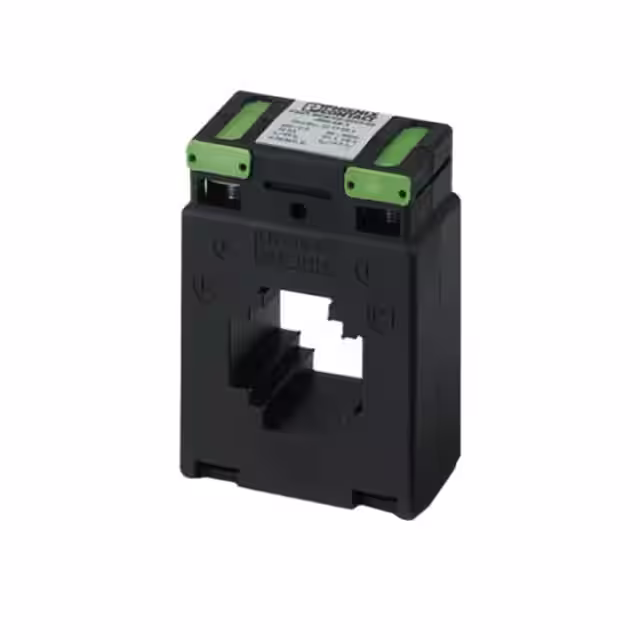

2277093 CURR SENSE XFMR 1:80 400A DIN RL Phoenix Contact	3,065	39.16	- + FFQ	Datasheet	Bulk	PACT	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	400 A	-	-	-	-	-	-	DIN Rail	2.362 L x 1.181 W (60.00mm x 30.00mm)	3.150 (80.00mm)
2277624 CURR SENSE XFMR 125A DIN RAIL Phoenix Contact	3,374	39.16	- + FFQ	Datasheet	Bulk	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	125 A	-	-	-	-	-	-	DIN Rail	2.362 L x 1.181 W (60.00mm x 30.00mm)	3.150 (80.00mm)
2277857 CURR SENSE XFMR 200A DIN RAIL Phoenix Contact	2,676	39.16	- + FFQ	Datasheet	Bulk	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	200 A	-	-	-	-	-	-	DIN Rail	2.362 L x 1.181 W (60.00mm x 30.00mm)	3.150 (80.00mm)
2277174 CURR SENSE XFMR 1:120 600A DIN Phoenix Contact	3,116	62.88	- + FFQ		Bulk	PACT	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	600 A	-	-	1:120	-	-	-	DIN Rail	3.346 L x 1.181 W (85.00mm x 30.00mm)	4.252 (108.00mm)

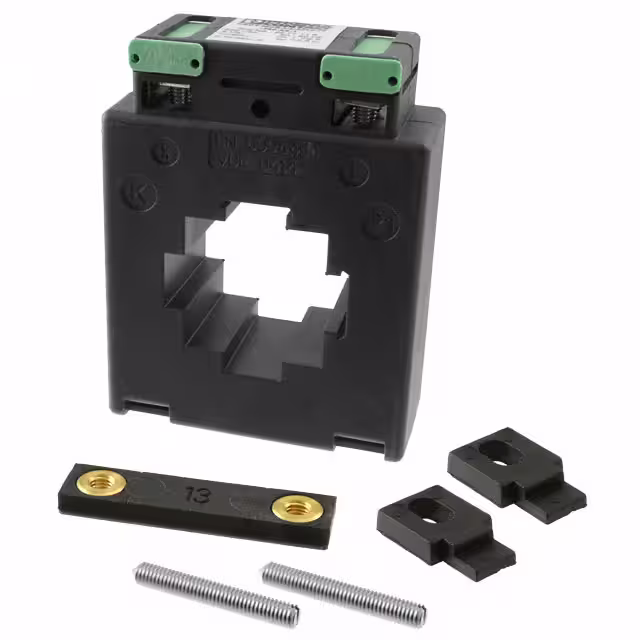

2277116 CURR SENSE XFMR 1:50 250A DIN RL Phoenix Contact	4,515	65.18	- + FFQ		Bulk	PACT	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	250 A	-	-	1:50	-	-	-	DIN Rail	2.756 L x 1.181 W (70.00mm x 30.00mm)	3.543 (90.00mm)
2277844 CURR SENSE XFMR 150A DIN RAIL Phoenix Contact	1,079	37.96	- + FFQ	Datasheet	Bulk	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	150 A	-	-	-	-	-	-	DIN Rail	2.362 L x 1.181 W (60.00mm x 30.00mm)	3.150 (80.00mm)
2277064 CURR SENSE XFMR 1:20 100A DIN RL Phoenix Contact	3,035	39.16	- + FFQ	Datasheet	Bulk	PACT	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	100 A	-	-	-	-	-	-	DIN Rail	2.362 L x 1.181 W (60.00mm x 30.00mm)	3.150 (80.00mm)
2277080 CURR SENSE XFMR 1:50 250A DIN RL Phoenix Contact	2,938	39.16	- + FFQ	Datasheet	Bulk	PACT	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	250 A	-	-	1:50	-	-	-	DIN Rail	2.362 L x 1.181 W (60.00mm x 30.00mm)	3.150 (80.00mm)
2277022 CURR SENSE XFMR 1:20 100A DIN RL Phoenix Contact	2,776	44.49	- + FFQ	Datasheet	Bulk	PACT	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	100 A	-	-	-	-	-	-	DIN Rail	1.732 L x 1.181 W (44.00mm x 30.00mm)	2.598 (66.00mm)
2277035 CURR SENSE XFMR 1:30 150A DIN RL Phoenix Contact	1,567	44.49	- + FFQ	Datasheet	Bulk	PACT	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	150 A	-	-	1:30	-	-	-	DIN Rail	1.732 L x 1.181 W (44.00mm x 30.00mm)	2.598 (66.00mm)
2277051 CURR SENSE XFMR 1:80 400A DIN RL Phoenix Contact	2,505	44.49	- + FFQ	Datasheet	Bulk	PACT	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	400 A	-	-	-	-	-	-	DIN Rail	1.732 L x 1.181 W (44.00mm x 30.00mm)	2.598 (66.00mm)
2277611 CURR SENSE XFMR 75A DIN RAIL Phoenix Contact	2,825	44.49	- + FFQ	Datasheet	Bulk	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	75 A	-	-	-	-	-	-	DIN Rail	1.732 L x 1.181 W (44.00mm x 30.00mm)	2.598 (66.00mm)
2277789 CURR SENSE XFMR 300A DIN RAIL Phoenix Contact	1,609	44.49	- + FFQ	Datasheet	Bulk	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	300 A	-	-	-	-	-	-	DIN Rail	1.732 L x 1.181 W (44.00mm x 30.00mm)	2.598 (66.00mm)
2277776 CURR SENSE XFMR 200A DIN RAIL Phoenix Contact	2,572	44.49	- + FFQ	Datasheet	Bulk	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	200 A	-	-	-	-	-	-	DIN Rail	1.732 L x 1.181 W (44.00mm x 30.00mm)	2.598 (66.00mm)
