Results:

Photo Mfr. Part # Availability Price Quantity Datasheet Packaging Series ProductStatus MountingType FuseSize CurrentRating(Amps) ForUseWith/RelatedProducts FuseType FuseholderType NumberofCircuits Voltage Orientation TerminationStyle ContactMaterial

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	MountingType	FuseSize	CurrentRating(Amps)	ForUseWith/RelatedProducts	FuseType	FuseholderType	NumberofCircuits	Voltage	Orientation	TerminationStyle	ContactMaterial

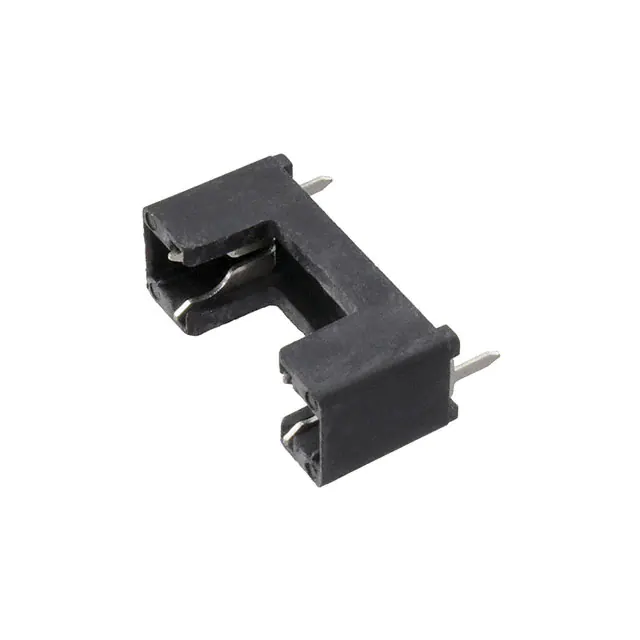

	FH-320-NV FUSE HOLDER CART 250V 6.3A PCB Essentra Components	13,259	0.86	- + FFQ	Datasheet	Bulk	Richco	Active	Through Hole	0.197 Dia x 0.787 L (5mm x 20mm)	6.3 A	5mm x 20mm	Cartridge	Holder	1	250V	Horizontal	PC Pin	Brass
	FCB-110-H FUSE CLIP PCB MNT SILVER ATO297 Essentra Components	957	0.00	- + FFQ		-	Richco	Obsolete	-	-	-	-	-	-	-	-	-	-	-
