Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	OutputType	ActuatorMaterial	TerminationStyle	Frequency	Voltage-Supply	MustOperate	MustRelease	OperatingTemperature

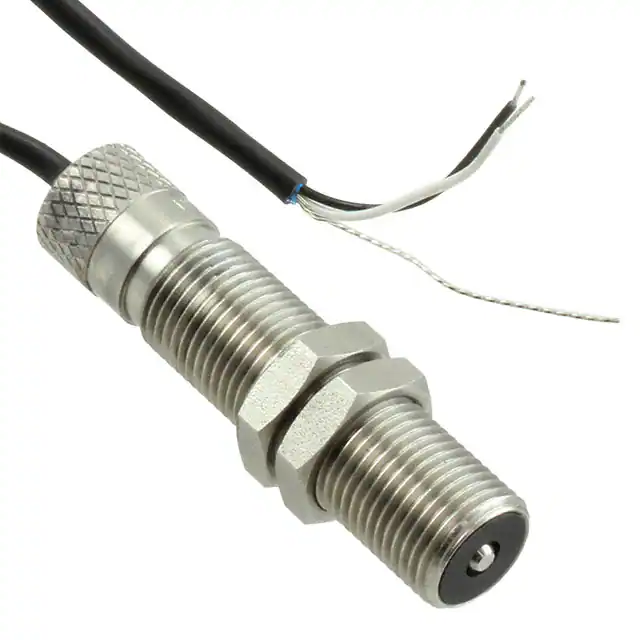

	MP62TA00 SENSOR VRS VOLTAGE CABLE Red Lion Controls	419	106.76	- + FFQ	Datasheet	Box	-	Active	VRS (Passive)	Sine Wave	Ferrous Metals, Gear Tooth	Cable	-	-	-	-	-40°C ~ 107°C (TA)
	LMPCC000 SENSOR LOGIC MAGNETIC PICKUP NPN Red Lion Controls	757	155.04	- + FFQ	Datasheet	Bulk	-	Active	Logic Magnetic Pickup	NPN - Open Collector	Ferrous Metals, Gear Tooth	Connector	10 kHz	9V ~ 30V	-	-	-18°C ~ 60°C (TA)

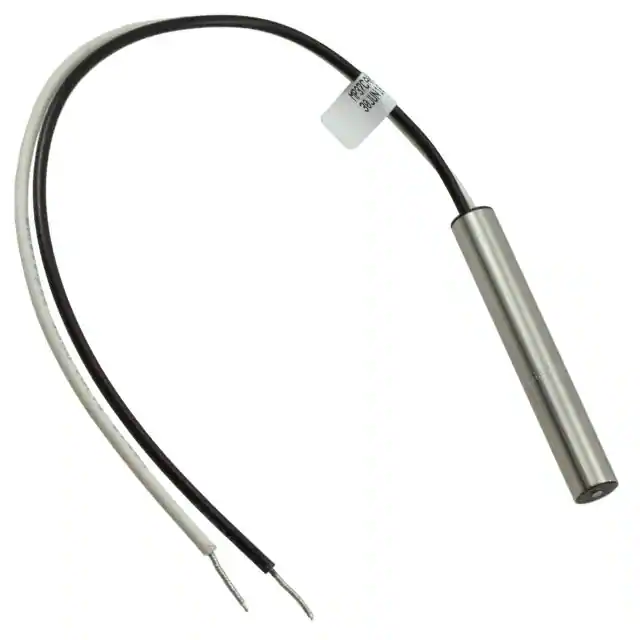

	MP37CA00 SENSOR VRS VOLTAGE CABLE Red Lion Controls	1,117	77.46	- + FFQ	Datasheet	Box	-	Active	VRS (Passive)	Sine Wave	Ferrous Metals, Gear Tooth	Cable	-	-	-	-	-40°C ~ 107°C (TA)

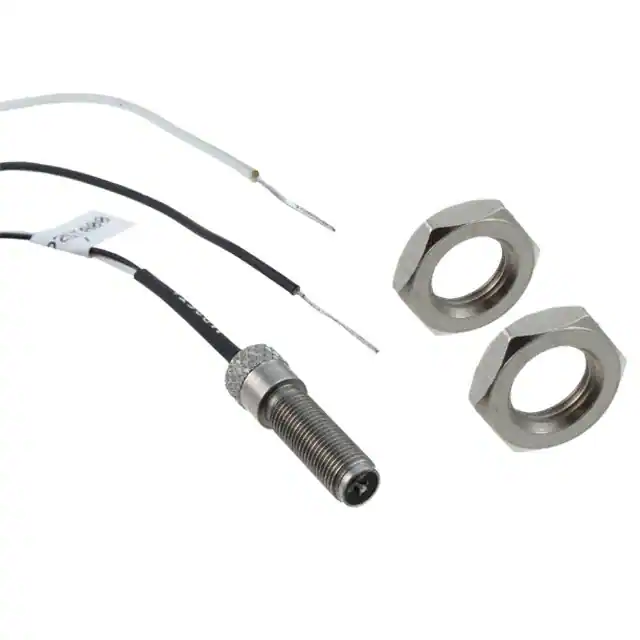

	MP25TA00 SENSOR VRS VOLTAGE CABLE Red Lion Controls	2,727	79.31	- + FFQ	Datasheet	Box	-	Active	VRS (Passive)	Sine Wave	Ferrous Metals, Gear Tooth	Cable	-	-	-	-	-40°C ~ 107°C (TA)

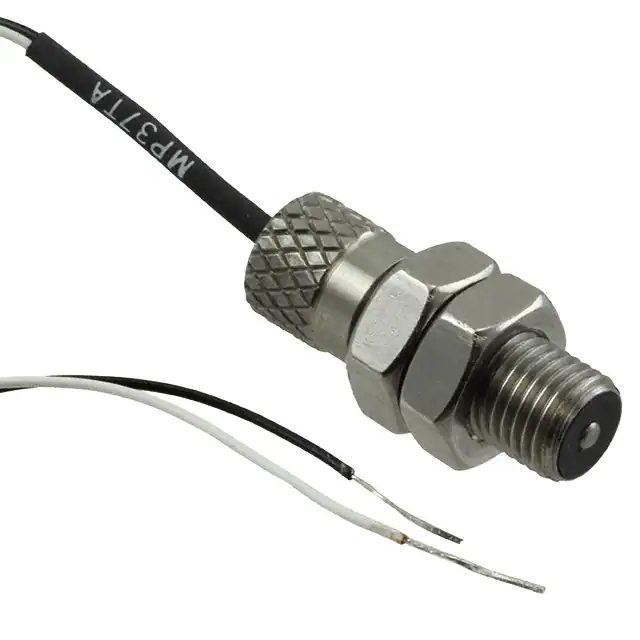

	MP37TA00 SENSOR VRS VOLTAGE CABLE Red Lion Controls	1,283	81.22	- + FFQ	Datasheet	Box	-	Active	VRS (Passive)	Sine Wave	Ferrous Metals, Gear Tooth	Cable	-	-	-	-	-40°C ~ 107°C (TA)

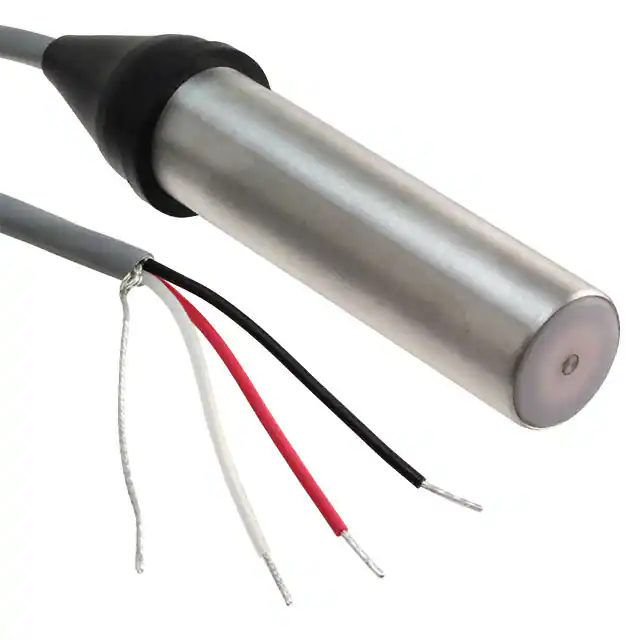

	LMPC0000 SENSOR LOGIC MAGNETIC PICKUP NPN Red Lion Controls	786	152.49	- + FFQ	Datasheet	Box	-	Active	Logic Magnetic Pickup	NPN - Open Collector	Ferrous Metals, Gear Tooth	Cable	10 kHz	9V ~ 30V	-	-	-18°C ~ 60°C (TA)

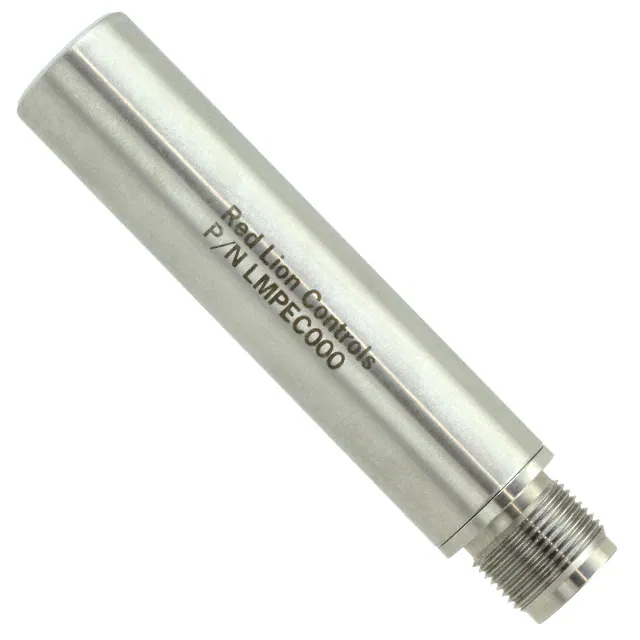

	LMPEC000 SENSOR LOG MAGNETIC PICKUP TRANS Red Lion Controls	738	170.60	- + FFQ	Datasheet	Box	-	Active	Logic Magnetic Pickup	Transistor, Base-Emitter Resistor	Ferrous Metals, Gear Tooth	Connector	10 kHz	9V ~ 30V	-	-	-18°C ~ 60°C (TA)

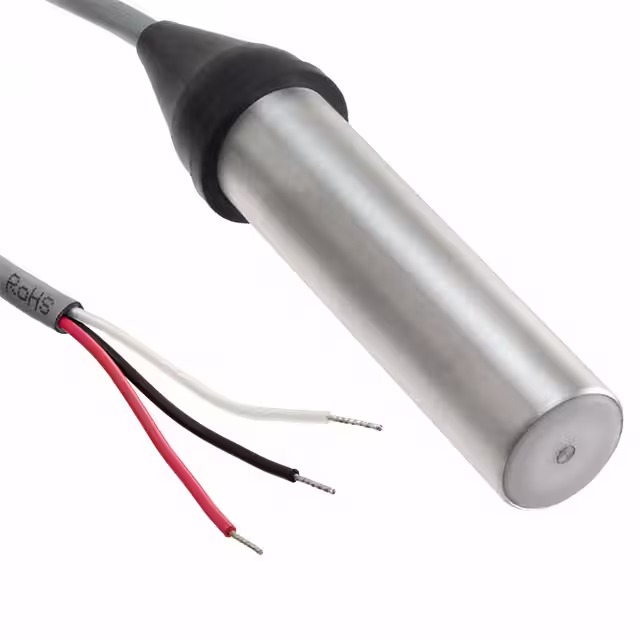

	LMPC0025 SENSOR LOGIC MAG PICKUP 25FT CBL Red Lion Controls	329	183.07	- + FFQ	Datasheet	Box	-	Active	Logic Magnetic Pickup	NPN - Open Collector	Ferrous Metals, Gear Tooth	Cable	10 kHz	9V ~ 30V	-	-	-18°C ~ 60°C (TA)
	MP62TAC1 SENSOR VRS VOLTAGE CONNECTOR Red Lion Controls	804	127.18	- + FFQ	Datasheet	Box	-	Active	VRS (Passive)	Sine Wave	Ferrous Metals, Gear Tooth	Connector	-	-	-	-	-40°C ~ 107°C (TA)
	LMPC0050 SENSOR LOGIC MAG PICKUP 50FT CBL Red Lion Controls	876	192.21	- + FFQ	Datasheet	Box	-	Active	Logic Magnetic Pickup	NPN - Open Collector	Ferrous Metals, Gear Tooth	Cable	10 kHz	9V ~ 30V	-	-	-18°C ~ 60°C (TA)
	MP62TB00 SENSOR VRS VOLTAGE CABLE Red Lion Controls	543	197.66	- + FFQ	Datasheet	Box	-	Active	VRS (Passive)	Sine Wave	Ferrous Metals, Gear Tooth	Cable	-	-	-	-	-40°C ~ 107°C (TA)
	MP75TX00 SENSOR VRS VOLTAGE CABLE Red Lion Controls	520	458.45	- + FFQ	Datasheet	Box	-	Active	VRS (Passive)	Sine Wave	Ferrous Metals, Gear Tooth	Cable	-	-	-	-	-73°C ~ 93°C (TA)
