Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	OutputType	ActuatorMaterial	TerminationStyle	Frequency	Voltage-Supply	MustOperate	MustRelease	OperatingTemperature

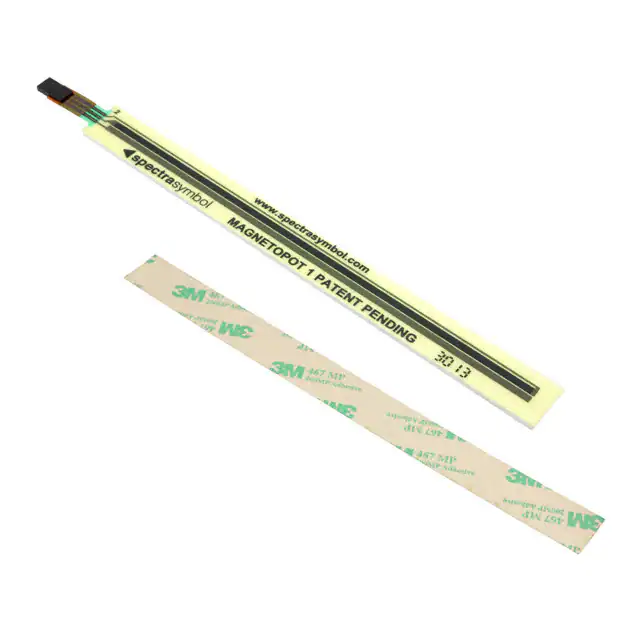

	MP1-L-0100-103-5%-RH SENSOR POT RESISTIVE WIRE LEADS Spectra Symbol	2,779	28.75	- + FFQ	Datasheet	Bulk	MagnetoPots	Active	Potentiometer	Resistive	Magnet	Wire Leads	-	-	-	-	85°C (TA)
	MP1-L-0025-103-5%-RH SENSOR POT RESISTIVE WIRE LEADS Spectra Symbol	4,635	21.72	- + FFQ	Datasheet	Bulk	MagnetoPots	Active	Potentiometer	Resistive	Magnet	Wire Leads	-	-	-	-	85°C (TA)
	MP1-L-0050-103-5%-RH SENSOR POT RESISTIVE WIRE LEADS Spectra Symbol	2,732	26.49	- + FFQ	Datasheet	Bulk	MagnetoPots	Active	Potentiometer	Resistive	Magnet	Wire Leads	-	-	-	-	85°C (TA)
	MP1-L-0200-103-5%-RH SENSOR POT RESISTIVE WIRE LEADS Spectra Symbol	1,205	36.82	- + FFQ	Datasheet	Bulk	MagnetoPots	Active	Potentiometer	Resistive	Magnet	Wire Leads	-	-	-	-	85°C (TA)
	MP1-R-0046-353-103-5%-RH SENSOR POT RESISTIVE WIRE LEADS Spectra Symbol	2,785	39.32	- + FFQ	Datasheet	Bulk	MagnetoPots	Active	Potentiometer	Resistive	Magnet	Wire Leads	-	-	-	-	85°C (TA)
	MP1-L-0300-103-5%-RH SENSOR POT RESISTIVE WIRE LEADS Spectra Symbol	1,308	42.45	- + FFQ	Datasheet	Bulk	MagnetoPots	Active	Potentiometer	Resistive	Magnet	Wire Leads	-	-	-	-	85°C (TA)
	MP1-L-0150-103-5%-RH SENSOR POT RESISTIVE WIRE LEADS Spectra Symbol	1,238	30.11	- + FFQ	Datasheet	Bulk	MagnetoPots	Active	Potentiometer	Resistive	Magnet	Wire Leads	-	-	-	-	85°C (TA)
	MP1-L-0500-203-5%-RH SENSOR POT RESISTIVE WIRE LEADS Spectra Symbol	1,340	57.69	- + FFQ	Datasheet	Bulk	MagnetoPots	Active	Potentiometer	Resistive	Magnet	Wire Leads	-	-	-	-	85°C (TA)
	MP1-L-0012-103-5%-RH SENSOR POT RESISTIVE WIRE LEADS Spectra Symbol	3,098	14.20	- + FFQ	Datasheet	Bulk	MagnetoPots	Active	Potentiometer	Resistive	Magnet	Wire Leads	-	-	-	-	85°C (TA)
	MP1-L-0172-103-5%-RH SENSOR POT RESISTIVE WIRE LEADS Spectra Symbol	2,883	25.57	- + FFQ	Datasheet	Bulk	MagnetoPots	Active	Potentiometer	Resistive	Magnet	Wire Leads	-	-	-	-	85°C (TA)
	MP1-L-0400-203-5%-RH SENSOR POT RESISTIVE WIRE LEADS Spectra Symbol	1,856	36.07	- + FFQ	Datasheet	Bulk	MagnetoPots	Active	Potentiometer	Resistive	Magnet	Wire Leads	-	-	-	-	85°C (TA)
	MP1-L-0750-203-5%-RH SENSOR POT RESISTIVE WIRE LEADS Spectra Symbol	2,988	48.40	- + FFQ	Datasheet	Bulk	MagnetoPots	Active	Potentiometer	Resistive	Magnet	Wire Leads	-	-	-	-	85°C (TA)
	MP1-L-1000-203-5%-RH SENSOR POT RESISTIVE WIRE LEADS Spectra Symbol	3,084	73.42	- + FFQ	Datasheet	Bulk	MagnetoPots	Active	Potentiometer	Resistive	Magnet	Wire Leads	-	-	-	-	85°C (TA)
