Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
	GDE25-2 TRANSF .650 OHM DUAL GATE DRIVE Triad Magnetics	4,316	17.31	- + FFQ	Datasheet	Bulk	GDE25	Active	Gate Drive	680µH	540VµS	1:1:1	Through Hole	1.100 L x 1.040 W (27.94mm x 26.42mm)	1.200 (30.48mm)
	GDE25-1 TRANSF .350 OHM SINGL GATE DRIVE Triad Magnetics	3,821	17.31	- + FFQ	Datasheet	Bulk	GDE25	Active	Gate Drive	680µH	540VµS	1:1	Through Hole	1.100 L x 1.040 W (27.94mm x 26.42mm)	1.200 (30.48mm)

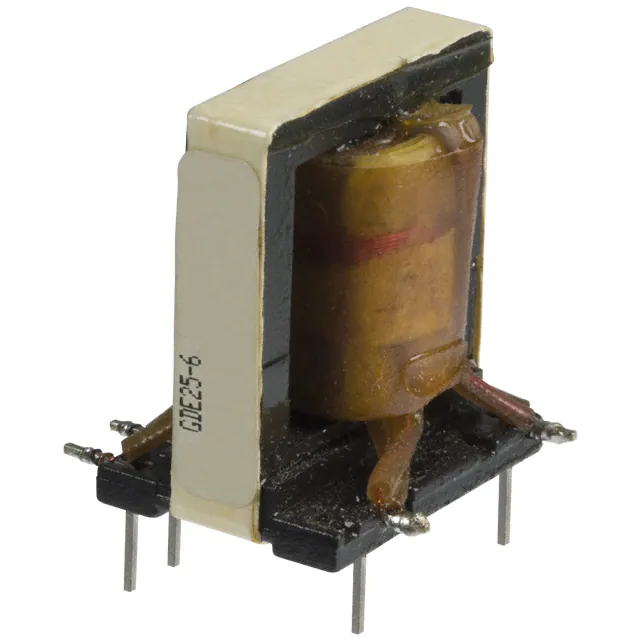

	GDE25-6 TRANSF 1.75 OHM DUAL GATE DRIVE Triad Magnetics	3,089	17.31	- + FFQ	Datasheet	Bulk	GDE25	Active	Gate Drive	680µH	540VµS	1:1.5:1.5	Through Hole	1.100 L x 1.040 W (27.94mm x 26.42mm)	1.200 (30.48mm)
	GDE25-3 TRANSF .350 OHM SINGL GATE DRIVE Triad Magnetics	1,271	17.31	- + FFQ	Datasheet	Bulk	GDE25	Active	Gate Drive	1.5mH	840VµS	1.5:1	Through Hole	1.100 L x 1.040 W (27.94mm x 26.42mm)	1.200 (30.48mm)
	GDE25-4 TRANSF .650 OHM DUAL GATE DRIVE Triad Magnetics	3,382	17.31	- + FFQ	Datasheet	Bulk	GDE25	Active	Gate Drive	1.5mH	840VµS	1.5:1:1	Through Hole	1.100 L x 1.040 W (27.94mm x 26.42mm)	1.200 (30.48mm)

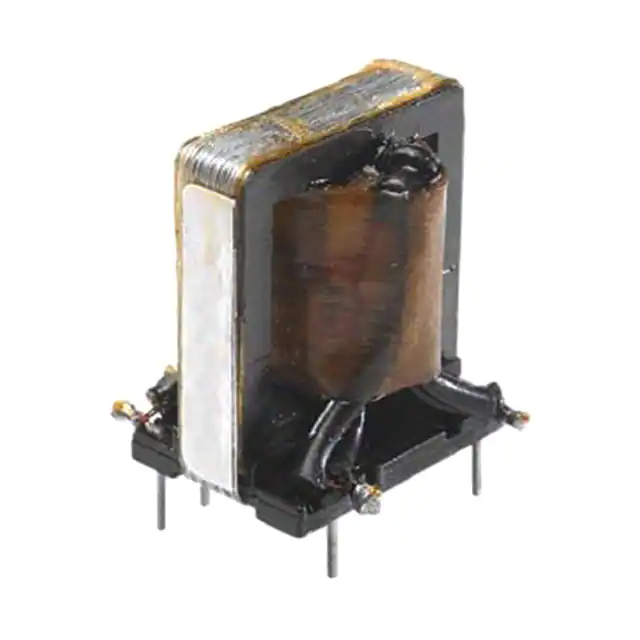

	GDE25-1-B TRANSF .350 OHM SINGL GATE DRIVE Triad Magnetics	2,021	11.42	- + FFQ	Datasheet	Bulk	GDE25	Active	Gate Drive	680µH	540VµS	1:1	Through Hole	1.100 L x 1.040 W (27.94mm x 26.42mm)	1.200 (30.48mm)
	GDE25-2-B TRANSF .650 OHM DUAL GATE DRIVE Triad Magnetics	1,753	11.42	- + FFQ	Datasheet	Bulk	GDE25	Active	Gate Drive	680µH	540VµS	1:1:1	Through Hole	1.100 L x 1.040 W (27.94mm x 26.42mm)	1.200 (30.48mm)
	GDE25-4-B TRANSF .650 OHM DUAL GATE DRIVE Triad Magnetics	1,700	11.42	- + FFQ	Datasheet	Bulk	GDE25	Active	Gate Drive	1.5mH	840VµS	1.5:1:1	Through Hole	1.100 L x 1.040 W (27.94mm x 26.42mm)	1.200 (30.48mm)
	GDE25-5-B TRANSF .875 OHM SINGL GATE DRIVE Triad Magnetics	2,242	11.42	- + FFQ	Datasheet	Bulk	GDE25	Active	Gate Drive	680µH	540VµS	1:1.5	Through Hole	1.100 L x 1.040 W (27.94mm x 26.42mm)	1.200 (30.48mm)
	GDE25-6-B TRANSF 1.75 OHM DUAL GATE DRIVE Triad Magnetics	1,111	11.42	- + FFQ	Datasheet	Bulk	GDE25	Active	Gate Drive	680µH	540VµS	1:1.5:1.5	Through Hole	1.100 L x 1.040 W (27.94mm x 26.42mm)	1.200 (30.48mm)
	GDE25-5 TRANSF .875 OHM SINGL GATE DRIVE Triad Magnetics	1,545	13.06	- + FFQ	Datasheet	Bulk	GDE25	Active	Gate Drive	680µH	540VµS	1:1.5	Through Hole	1.100 L x 1.040 W (27.94mm x 26.42mm)	1.200 (30.48mm)
