Results:

Photo	Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	InsertionLoss	Frequency	Specifications	Size/Dimension
	PDW06038 RF PWR DIVIDER 2GHZ-10GHZ MODULE Knowles Dielectric Labs	1,117	65.59	- + FFQ	Datasheet	Bulk	-	Active	0.8dB	2 GHz ~ 10 GHz	Isolation (Typ) 20dB, 20dB Return Loss, 3° Imbalance (Max)	0.400 L x 0.250 W x 0.020 H (10.16mm x 6.35mm x 0.51mm)
	PDW06984 RF POWER DVDR 25GHZ-32GHZ MODULE Knowles Dielectric Labs	1,374	15.55	- + FFQ	Datasheet	Bulk	-	Active	0.25dB	25 GHz ~ 32 GHz	Isolation (Min) 14dB, 20dB Return Loss, 5° Imbalance (Max)	0.095 L x 0.085 W (2.41mm x 2.16mm)
	PDR06390 RESISTIVE 2 WAY POWER DIVIDER Knowles Dielectric Labs	4,004	31.20	- + FFQ	Datasheet	Bulk	-	Active	0.3dB	0 Hz ~ 20 GHz	20dB Return Loss	0.075 L x 0.070 W x 0.010 H (1.91mm x 1.78mm x 0.25mm)
	PDW06399 RF PWR DIVIDER 9GHZ-11GHZ MODULE Knowles Dielectric Labs	4,331	16.97	- + FFQ	Datasheet	Bulk	-	Active	0.25dB	9 GHz ~ 11 GHz	Isolation (Min) 14dB, 20dB Return Loss, 5° Imbalance (Max)	0.150 L x 0.100 W x 0.015 H (3.81mm x 2.54mm x 0.38mm)
	PDW06401 RF POWER DVDR 15GHZ-17GHZ MODULE Knowles Dielectric Labs	3,050	19.09	- + FFQ	Datasheet	Bulk	-	Active	0.5dB	15 GHz ~ 17 GHz	Isolation (Min) 18dB, 25dB Return Loss, 5° Imbalance (Max)	0.120 L x 0.120 W x 0.015 H (3.05mm x 3.05mm x 0.38mm)
	PDW06407 RF PWR DIVIDER 2GHZ-18GHZ MODULE Knowles Dielectric Labs	1,257	70.45	- + FFQ	Datasheet	Bulk	-	Active	2.5dB	2 GHz ~ 18 GHz	Isolation (Typ) 25dB, 18dB Return Loss, 5° Imbalance (Max)	0.600 L x 0.180 W x 0.020 H (15.24mm x 4.57mm x 0.51mm)
	PDR06120 RESISTIVE 2 WAY POWER DIVIDER Knowles Dielectric Labs	5,483	7.71	- + FFQ	Datasheet	Bulk	-	Active	0.5dB	0 Hz ~ 40 GHz	20dB Return Loss	0.075 L x 0.065 W x 0.010 H (1.91mm x 1.65mm x 0.25mm)

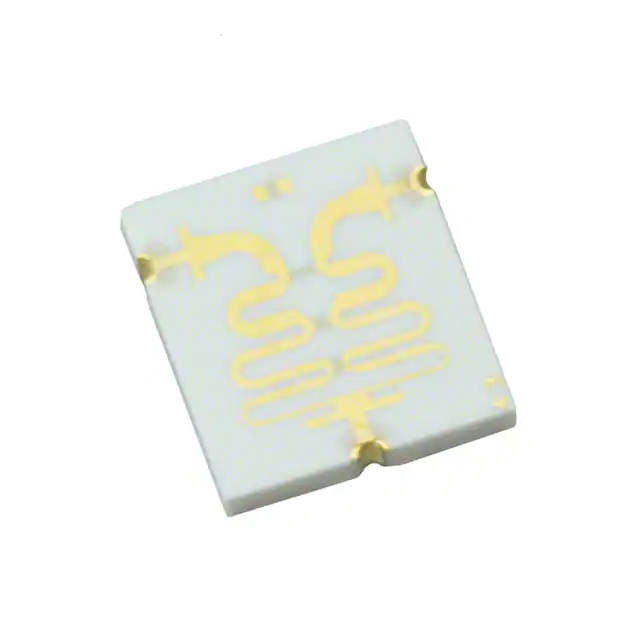

	PDW05758 RF PWR DIVIDER 6GHZ-18GHZ MODULE Knowles Dielectric Labs	2,130	39.14	- + FFQ	Datasheet	Bulk	-	Active	0.7dB	6 GHz ~ 18 GHz	Isolation (Typ) 20dB, 20dB Return Loss, 3° Imbalance (Max)	0.185 L x 0.160 W x 0.020 H (4.70mm x 4.06mm x 0.51mm)

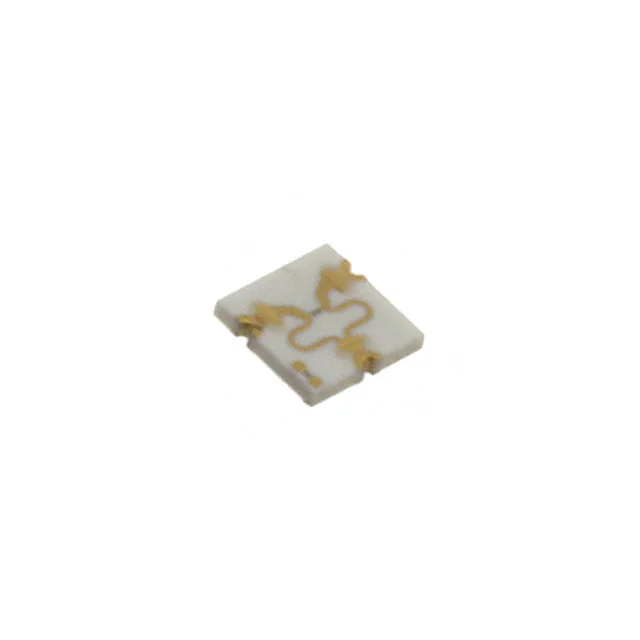

	PDW07630 RF POWER DVDR 25GHZ-32GHZ MODULE Knowles Dielectric Labs	4,281	21.66	- + FFQ	Datasheet	Tray	-	Active	0.25dB	25 GHz ~ 32 GHz	Isolation (Min) 14dB, 20dB Return Loss, 5° Imbalance (Max)	0.070 L x 0.070 W x 0.010 H (1.78mm x 1.78mm x 0.25mm)

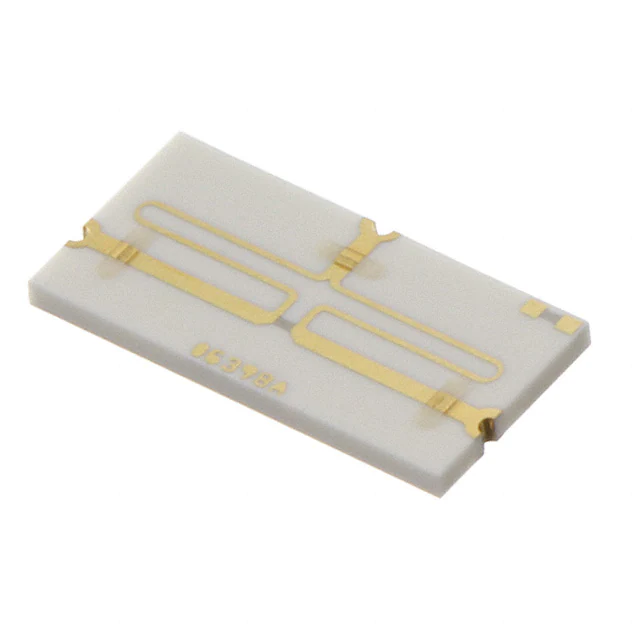

	PDW06398 RF PWR DIVIDER 5GHZ-7GHZ MODULE Knowles Dielectric Labs	1,755	24.24	- + FFQ	Datasheet	Bulk	-	Active	0.25dB	5 GHz ~ 7 GHz	Isolation (Min) 14dB, 14dB Return Loss, 5° Imbalance (Max)	0.240 L x 0.120 W x 0.015 H (6.10mm x 3.05mm x 0.38mm)
	PDW06933 2 WAY POWER DIVIDER Knowles Dielectric Labs	2,930	75.14	- + FFQ	Datasheet	Bulk	-	Active	2.5dB	2 GHz ~ 18 GHz	Isolation (Typ) 20dB, 18dB Return Loss	0.600 L x 0.180 W x 0.020 H (15.24mm x 4.57mm x 0.51mm)

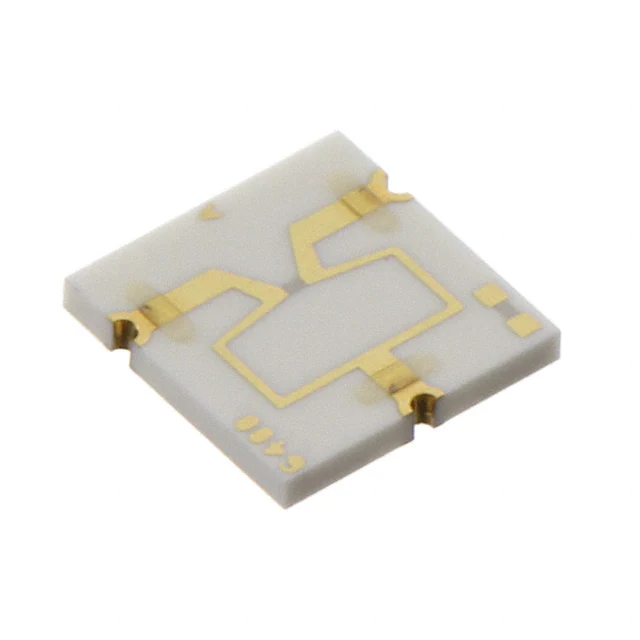

	PDW06400 RF POWER DVDR 11GHZ-13GHZ MODULE Knowles Dielectric Labs	1,050	16.66	- + FFQ	Datasheet	Bulk	-	Active	0.5dB	11 GHz ~ 13 GHz	Isolation (Min) 18dB, 25dB Return Loss, 5° Imbalance (Max)	0.130 L x 0.130 W x 0.015 H (3.30mm x 3.30mm x 0.38mm)

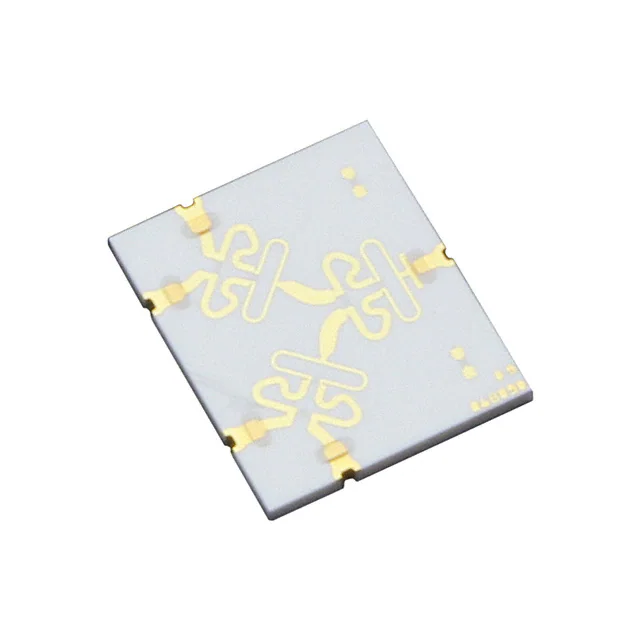

	PDW06089 RF PWR DIVIDER 6GHZ-18GHZ MODULE Knowles Dielectric Labs	548	107.24	- + FFQ	Datasheet	Bulk	-	Active	1dB	6 GHz ~ 18 GHz	Isolation (Min) 14dB, 14dB Return Loss, 3° Imbalance (Max)	0.300 L x 0.250 W x 0.020 H (7.62mm x 6.35mm x 0.51mm)
	PDR05848 RF PWR DIVIDER 0HZ-40GHZ MODULE Knowles Dielectric Labs	1,090	12.22	- + FFQ	Datasheet	Tray	-	Active	0.5dB	0 Hz ~ 40 GHz	20dB Return Loss	0.075 L x 0.065 W x 0.010 H (1.91mm x 1.65mm x 0.25mm)

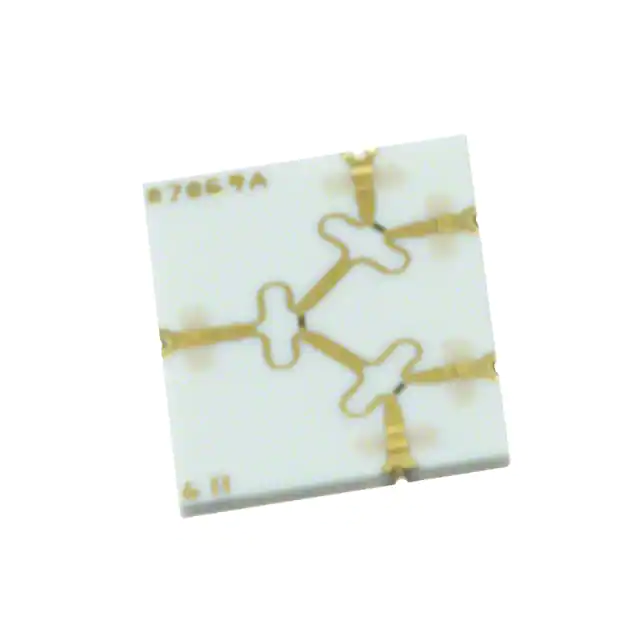

	PDW07069 RF POWER DVDR 24GHZ-32GHZ MODULE Knowles Dielectric Labs	1,299	19.50	- + FFQ	Datasheet	Bulk	-	Active	1dB	24 GHz ~ 32 GHz	Isolation (Min) 10dB, 14dB Return Loss, 6° Imbalance (Max)	0.170 L x 0.140 W x 0.010 H (4.32mm x 3.56mm x 0.25mm)
	PDR06380 RF PWR DIVIDER 0HZ-40GHZ MODULE Knowles Dielectric Labs	2,228	11.32	- + FFQ	Datasheet	Tray	-	Active	0.5dB	0 Hz ~ 40 GHz	20dB Return Loss	0.075 L x 0.065 W x 0.010 H (1.91mm x 1.65mm x 0.25mm)
	PDW07691 RF POWER DVDR 18GHZ-20GHZ MODULE Knowles Dielectric Labs	3,521	17.18	- + FFQ	Datasheet	Tray	-	Active	0.5dB	18 GHz ~ 20 GHz	Isolation (Min) 15dB, 15dB Return Loss, 5° Imbalance (Max)	0.100 L x 0.100 W x 0.015 H (2.54mm x 2.54mm x 0.38mm)

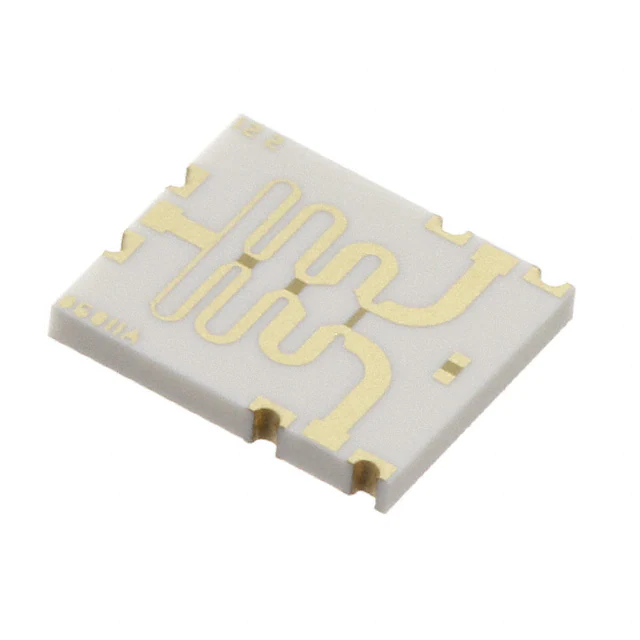

	PDW06011 RF PWR DIVIDER 6GHZ-18GHZ MODULE Knowles Dielectric Labs	1,885	39.14	- + FFQ	Datasheet	Bulk	-	Active	1.2dB	6 GHz ~ 18 GHz	Isolation (Typ) 25dB, 15dB Return Loss, 3° Imbalance (Max)	0.185 L x 0.160 W x 0.020 H (4.70mm x 4.06mm x 0.51mm)
	PDW06041 RF PWR DIVIDER 2GHZ-10GHZ MODULE Knowles Dielectric Labs	1,860	76.08	- + FFQ	Datasheet	Bulk	-	Active	0.75dB	2 GHz ~ 10 GHz	Isolation (Typ) 20dB, 20dB Return Loss, 3° Imbalance (Max)	0.400 L x 0.250 W x 0.020 H (10.16mm x 6.35mm x 0.51mm)
