Photo Mfr. Part # Availability Price Quantity Datasheet Packaging Series ProductStatus Type Applications IntendedChipset ChipsetManufacturer Voltage-Primary Voltage-Auxiliary Voltage-Isolation Inductance@Frequency Frequency OperatingTemperature MountingType Size/Dimension Height-Seated(Max) Footprint

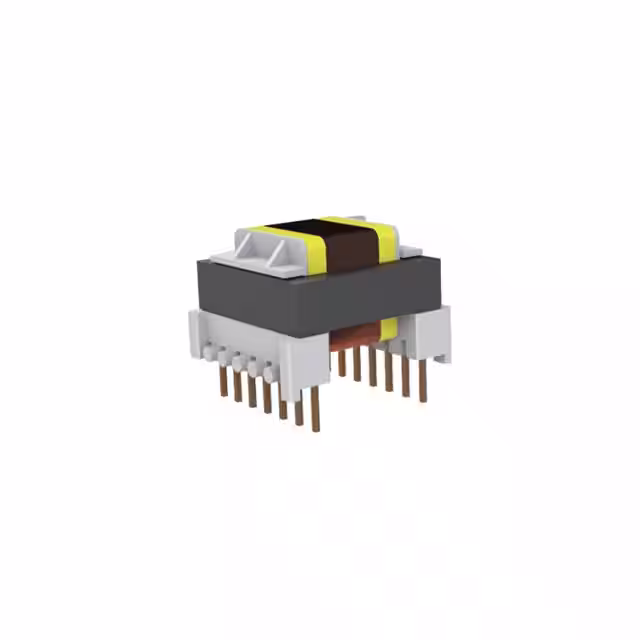

FLYT-001

FLYT-001

FLYBACK TRANSFORMER FOR 3.5KW BA

5,280

7.00

- +

FFQ

FLYT-001

Datasheet

Box

-

Active

-

Flyback Converters

-

-

-

-

-

6.3µH @ 100kHz

100kHz

-40°C ~ 125°C

Through Hole

0.600 L x 0.500 W (15.24mm x 12.70mm)

0.551 (14.00mm)

-

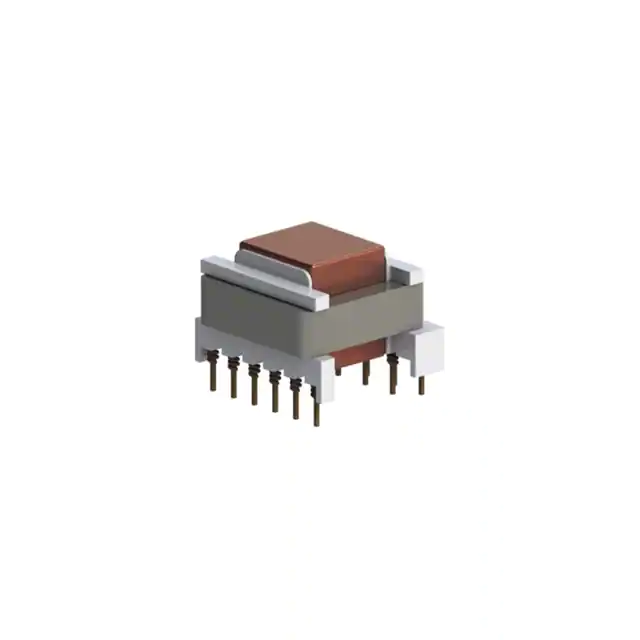

FLYT-003

FLYT-003

FLYBACK TRANSFORMER FOR 11KW BAT

5,207

7.00

- +

FFQ

FLYT-003

Datasheet

Box

-

Active

-

Flyback Converters

-

-

-

-

-

12µH @ 100kHz

100kHz

-40°C ~ 125°C

Through Hole

0.945 L x 0.945 W (24.00mm x 24.00mm)

0.669 (17.00mm)

-
