Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	DiodeType	Voltage-PeakReverse(Max)	Current-Max	Capacitance@VrF	Resistance@IfF	PowerDissipation(Max)	OperatingTemperature
MSS50-B53-E45 SCHOTTKY DIODE,BEAMLEAD, E45-1 MACOM Technology Solutions	3,607	40.02	- + RFQ	Datasheet	Tray	MSS50-xxx-x	Active	Schottky - 1 Bridge	3V	50 mA	0.33pF @ 0V, 1MHz	-	100 mW	-65°C ~ 150°C
MSS40-448-E45 SCHOTTKY DIODE,BEAMLEAD, E45-1 MACOM Technology Solutions	4,762	40.31	- + RFQ		Tray	-	Active	Schottky - 1 Bridge	3V	50 mA	0.3pF @ 0V, 1MHz	7Ohm @ 5mA, 1MHz	100 mW	-65°C ~ 150°C
MPN7453A-T86 DIODE,PIN-CHIP-PACKAGE, T86 MACOM Technology Solutions	3,988	41.37	- + RFQ		Bulk	-	Active	PIN - Single	300V	-	0.15pF @ 50V, 100MHz	1Ohm @ 100mA, 100MHz	-	175°C (TJ)
MSS20-141-0402 SCHOTTKY DIODE,BEAMLEAD,0402 MACOM Technology Solutions	4,656	41.66	- + RFQ		Tray	-	Active	Schottky - Single	1V	35 mA	0.15pF @ 500mV, 1MHz	-	100 mW	-65°C ~ 150°C
MA4P303-120 DIODE,PIN,CERAMIC_PKG,SI MACOM Technology Solutions	2,318	41.80	- + RFQ		Tray	-	Active	PIN - Single	200V	-	0.35pF @ 10V, 1MHz	1.5Ohm @ 10mA, 500MHz	300 mW	-65°C ~ 175°C
MA4P504-255 DIODE,PIN,STRIPLINE MACOM Technology Solutions	4,621	42.66	- + RFQ		Tray	-	Active	PIN - Single	500V	-	0.4pF @ 100V, 1MHz	600mOhm @ 100mA, 100MHz	7.5 W	-65°C ~ 175°C

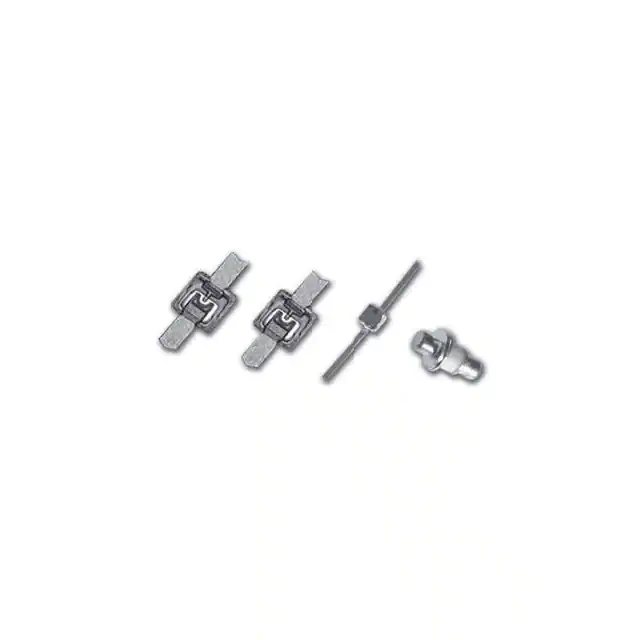

MSS39-045-P86 DIODE, SCHOTTKY, CHIP, P86 MACOM Technology Solutions	3,152	43.96	- + RFQ		Tray	-	Active	Schottky - Single	5V	50 mA	0.27pF @ 0V, 1MHz	-	100 mW	-65°C ~ 150°C
MA4P506-4 DIODE,PIN,GLASS,AXIAL,HI-VOLUME MACOM Technology Solutions	4,897	45.05	- + RFQ		Tray	-	Active	PIN - Single	500V	-	0.85pF @ 100V, 1MHz	300mOhm @ 100mA, 100MHz	-	-55°C ~ 175°C
MSS60-PCR46-B47 COM SCHOTTKY-BL, 46, B47 MACOM Technology Solutions	2,031	46.77	- + RFQ	Datasheet	Tray	MSS60-xxx-x	Active	Schottky	4V	50 mA	0.13pF @ 0V, 1MHz	-	100 mW	-65°C ~ 150°C
MSS40-B46-E45R SCHOTTKY DIODE,BEAMLEAD, E45R-1 MACOM Technology Solutions	2,465	46.88	- + RFQ	Datasheet	Tray	MSS40-xxx-x	Active	Schottky - 1 Bridge	3V	50 mA	0.17pF @ 0V, 1MHz	25Ohm @ 5mA, 1MHz	100 mW	-65°C ~ 175°C
MSS30-046-P55 SCHOTTKY DIODE,CHIP-PACKAGE, P55 MACOM Technology Solutions	1,232	47.63	- + RFQ		Tray	-	Active	Schottky - Single	2V	50 mA	0.3pF @ 0V, 1MHz	10Ohm @ 5mA, 1MHz	100 mW	-65°C ~ 150°C
MSS30-046-P86 COM-SCHOTTKY-CHIP, PACKAGE P86 MACOM Technology Solutions	1,765	47.88	- + RFQ		Tray	-	Active	Schottky - Single	2V	50 mA	0.33pF @ 0V, 1MHz	10Ohm @ 5mA, 1MHz	100 mW	-65°C ~ 150°C
MSS60-B46-E45 SCHOTTKY DIODE,BEAMLEAD,PACKAGE MACOM Technology Solutions	4,129	47.97	- + RFQ	Datasheet	Tray	MSS60-xxx-x	Active	Schottky - 1 Bridge	3V	50 mA	0.2pF @ 0V, 1MHz	-	100 mW	-65°C ~ 150°C

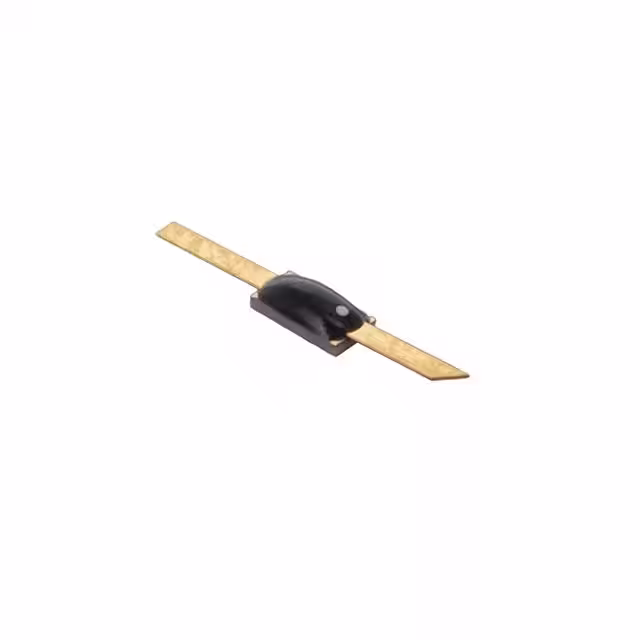

MSS20-047-E28 COM SCHOTTKY-BEAMLEAD-PACKAGE, E MACOM Technology Solutions	2,349	49.53	- + RFQ		Tray	-	Active	Schottky - Single	1V	35 mA	0.2pF @ 500mV, 1MHz	-	100 mW	-65°C ~ 150°C
MPN7453B-T83 DIODE,PIN-CHIP-PACKAGE, T83 MACOM Technology Solutions	2,361	49.73	- + RFQ		Tray	-	Active	PIN - Single	400V	-	0.2pF @ 50V, 100MHz	900mOhm @ 100mA, 100MHz	-	175°C (TJ)
MPN7420-T55 DIODE,PIN-CHIP-PACKAGE, T55-1 MACOM Technology Solutions	3,757	50.06	- + RFQ		Tray	-	Active	PIN - Single	400V	-	0.08pF @ 50V, 100MHz	1.5Ohm @ 100mA, 100MHz	-	175°C (TJ)
MSS20-051-E28X SCHOTTKY DIODE,BEAMLEAD, E28X MACOM Technology Solutions	2,705	50.46	- + RFQ		Tray	-	Active	Schottky - Single	1V	35 mA	0.25pF @ 500mV, 1MHz	-	100 mW	-65°C ~ 150°C
MA4P506-255 PIN, CERAMIC MACOM Technology Solutions	1,252	51.55	- + RFQ		Tray	-	Active	PIN - Single	500V	-	1pF @ 100V, 1MHz	300mOhm @ 100mA, 100MHz	15 W	-65°C ~ 175°C
MPN7380-T83 DIODE,PIN-CHIP-PACKAGE, T83 MACOM Technology Solutions	1,145	51.64	- + RFQ		Tray	-	Active	PIN - Single	800V	-	0.6pF @ 50V, 100MHz	500mOhm @ 100mA, 100MHz	-	175°C (TJ)
MA40261 DIODE,SCHOTTKY,DETECTOR,ODS-186 MACOM Technology Solutions	4,970	51.78	- + RFQ		Tray	-	Active	Schottky - Single	70V	-	-	-	150 mW	-65°C ~ 150°C
