Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	LogicType	NumberofCircuits	NumberofInputs	Features	Voltage-Supply	Current-Quiescent(Max)	Current-OutputHighLow	LogicLevel-Low	LogicLevel-High	MaxPropagationDelay@VMaxCL	OperatingTemperature	MountingType
MC3016P NAND GATE, TTL, PDIP14 Motorola	9,879	1.02	- + RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
SN74AS08DB IC GATE POS-AND QUAD 2INP 14SSOP Texas Instruments	6,295	1.02	- + RFQ		Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
SNJ54ALS02J NOR GATE, ALS SERIES Texas Instruments	6,839	1.02	- + RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
DM74S240N IC INVERTER 2CH 4-INP 20DIP Fairchild Semiconductor	3,617	1.04	- + RFQ	Datasheet	Tube	74S	Obsolete	Inverter	2	4	3-State	4.75V ~ 5.25V	-	15mA, 64mA	0.8V	2V	10ns @ 5V, 150pF	0°C ~ 70°C	Through Hole
CD4072BFX OR LOGIC GATES Harris Corporation	5,310	1.04	- + RFQ	Datasheet	Bulk	-	Active	OR Gate	2	4	-	3V ~ 18V	5 µA	6.8mA, 6.8mA	1.5V ~ 4V	3.5V ~ 11V	90ns @ 15V, 50pF	-55°C ~ 125°C	Through Hole
5409FMQB AND GATE, TTL/H/L SERIES National Semiconductor	6,032	1.07	- + RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
74AC11800DW AND/NAND GATE, AC SERIES Texas Instruments	9,231	1.09	- + RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
54LS02FMQB NOR GATE, LS SERIES TTL National Semiconductor	8,062	1.11	- + RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
54S134DM NAND GATE National Semiconductor	7,616	1.12	- + RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
949DC NAND GATE, DTL National Semiconductor	8,897	1.12	- + RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
DM74S136N XOR GATE, TTL, PDIP14 National Semiconductor	6,634	1.13	- + RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
SN74LS24AD NAND GATE, LS SERIES TTL Texas Instruments	6,482	1.14	- + RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-

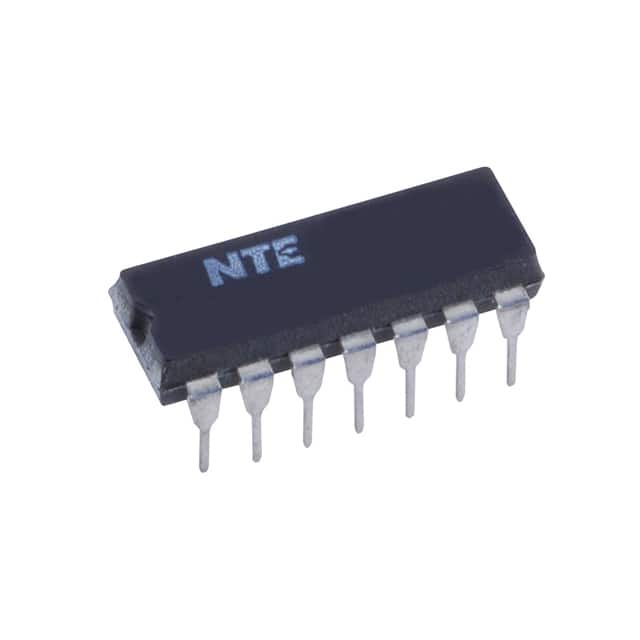

NTE4093B IC GATE NAND 4CH 2IN 14DIP NTE Electronics, Inc	7,509	1.15	- + RFQ	Datasheet	Bag	4000B	Active	NAND Gate	4	2	Schmitt Trigger	3V ~ 18V	1 µA	8.8mA, 8.8mA	0.9V ~ 4V	3.6V ~ 10.8V	80ns @ 15V, 50pF	-55°C ~ 125°C	Through Hole
MC819P NOR GATE, DTL, PDIP14 Motorola	8,101	1.16	- + RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
SN74ALS805AN3 NOR GATE, ALS SERIES Texas Instruments	7,975	1.18	- + RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
933PC AND GATE National Semiconductor	5,573	1.19	- + RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
930PC NAND GATE National Semiconductor	8,942	1.19	- + RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
SNJ54F36J NOR GATE, F/FAST SERIES, TTL Texas Instruments	7,991	1.20	- + RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
54LS11FMQB AND GATE, LS SERIES National Semiconductor	8,129	1.20	- + RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
54LS09FMQB AND GATE, LS SERIES National Semiconductor	6,671	1.20	- + RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
