Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	DrivenConfiguration	ChannelType	NumberofDrivers	GateType	Voltage-Supply	LogicVoltage-VILVIH	Current-PeakOutput(SourceSink)	InputType	HighSideVoltage-Max(Bootstrap)	Rise/FallTime(Typ)	OperatingTemperature	MountingType
MAX5075AAUA+ IC GATE DRVR LOW-SIDE 8UMAX Analog Devices Inc./Maxim Integrated	8,833	9.19	- + RFQ	Datasheet	Tube	-	Active	Low-Side	Synchronous	2	N-Channel MOSFET	4.5V ~ 15V	-	3A, 3A	RC Input Circuit	-	10ns, 10ns	-40°C ~ 150°C (TJ)	Surface Mount
MAX5078BATT+T IC GATE DRVR LOW-SIDE 6TDFN Analog Devices Inc./Maxim Integrated	3,883	13.12	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Not For New Designs	Low-Side	Single	1	N-Channel MOSFET	4V ~ 15V	0.8V, 2.1V	4A, 4A	Inverting, Non-Inverting	-	32ns, 26ns	-40°C ~ 150°C (TJ)	Surface Mount
LTC1155CS8#PBF IC GATE DRVR HIGH-SIDE 8SOIC Analog Devices Inc.	4,463	10.67	- + RFQ	Datasheet	Tube	-	Active	High-Side	Independent	2	N-Channel MOSFET	4.5V ~ 18V	0.8V, 2V	-	Non-Inverting	-	-	0°C ~ 70°C (TA)	Surface Mount
IXDD630CI IC GATE DRVR LOW-SIDE TO220-5 IXYS Integrated Circuits Division	7,225	9.56	- + RFQ	Datasheet	Tube	-	Active	Low-Side	Single	1	IGBT, N-Channel, P-Channel MOSFET	12.5V ~ 35V	0.8V, 3.5V	30A, 30A	Non-Inverting	-	11ns, 11ns	-55°C ~ 150°C (TJ)	Through Hole
IXDD630YI IC GATE DRVR LOW-SIDE TO263-5 IXYS Integrated Circuits Division	9,629	9.56	- + RFQ	Datasheet	Tube	-	Active	Low-Side	Single	1	IGBT, N-Channel, P-Channel MOSFET	12.5V ~ 35V	0.8V, 3.5V	30A, 30A	Non-Inverting	-	11ns, 11ns	-55°C ~ 150°C (TJ)	Surface Mount
LT1161CSW#PBF IC GATE DRVR HIGH-SIDE 20SOIC Analog Devices Inc.	1,665	11.18	- + RFQ	Datasheet	Tube	-	Active	High-Side	Independent	4	N-Channel MOSFET	8V ~ 48V	0.8V, 2V	-	Non-Inverting	-	-	0°C ~ 125°C (TJ)	Surface Mount
UC3707N IC GATE DRVR LOW-SIDE 16DIP Texas Instruments	1,938	10.88	- + RFQ	Datasheet	Tube	-	Active	Low-Side	Independent	2	N-Channel MOSFET	5V ~ 40V	0.8V, 2.2V	1.5A, 1.5A	Inverting, Non-Inverting	-	40ns, 40ns	0°C ~ 70°C (TA)	Through Hole
UC3708N IC GATE DRVR LOW-SIDE 8DIP Texas Instruments	3,694	12.47	- + RFQ	Datasheet	Tube	-	Active	Low-Side	Independent	2	N-Channel, P-Channel MOSFET	5V ~ 35V	0.8V, 2V	3A, 3A	Non-Inverting	-	25ns, 25ns	0°C ~ 70°C (TA)	Through Hole
IR2130SPBF IC GATE DRVR HALF-BRIDGE 28SOIC Infineon Technologies	3,657	13.06	- + RFQ	Datasheet	Tube	-	Active	Half-Bridge	3-Phase	6	IGBT, N-Channel MOSFET	10V ~ 20V	0.8V, 2.2V	250mA, 500mA	Inverting	600 V	80ns, 35ns	-40°C ~ 150°C (TJ)	Surface Mount

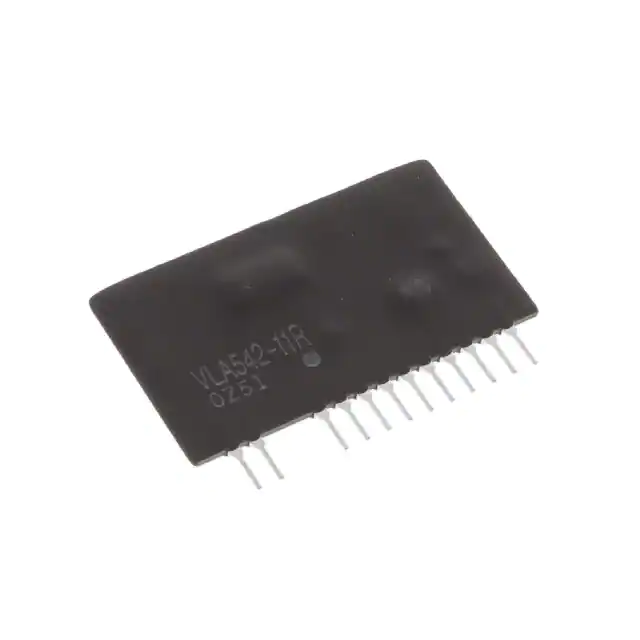

VLA542-11R IC GATE DRVR PWR MGMT MOSFET Powerex Inc.	2,205	16.96	- + RFQ	Datasheet	Bulk	-	Active	Half-Bridge	Single	1	IGBT	14V ~ 17V	-	5A, 5A	CMOS	-	400ns, 300ns	-20°C ~ 70°C	Through Hole

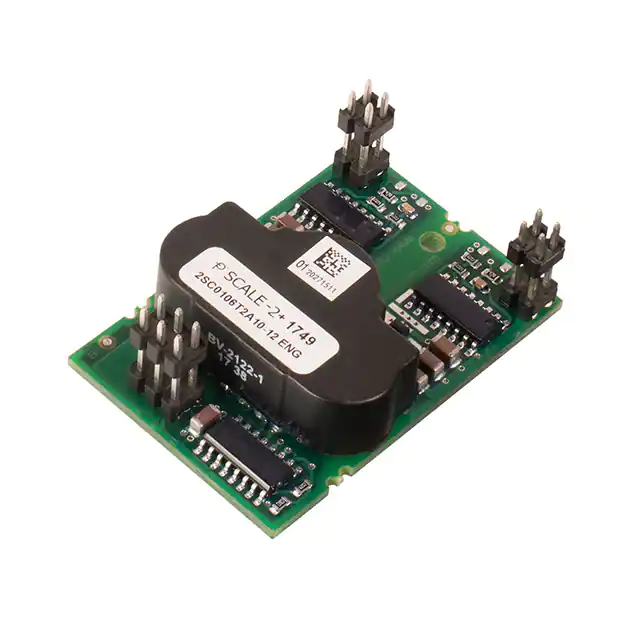

2SC0106T2A1-12 IC GATE DRVR HALF-BRIDGE MODULE Power Integrations	3,053	30.41	- + RFQ	Datasheet	Tray	SCALE™-2	Active	Half-Bridge	Independent	2	IGBT	14.5V ~ 15.5V	-	6A, 6A	-	1200 V	20ns, 13ns	-40°C ~ 105°C (TA)	Surface Mount
VLA500-01 IC GATE DRVR LOW-SIDE MODULE Powerex Inc.	3,650	52.63	- + RFQ	Datasheet	Bulk	-	Active	Low-Side	Single	1	IGBT	14.2V ~ 15.8V	-	12A, 12A	Non-Inverting	-	300ns, 300ns	-20°C ~ 60°C (TA)	Through Hole

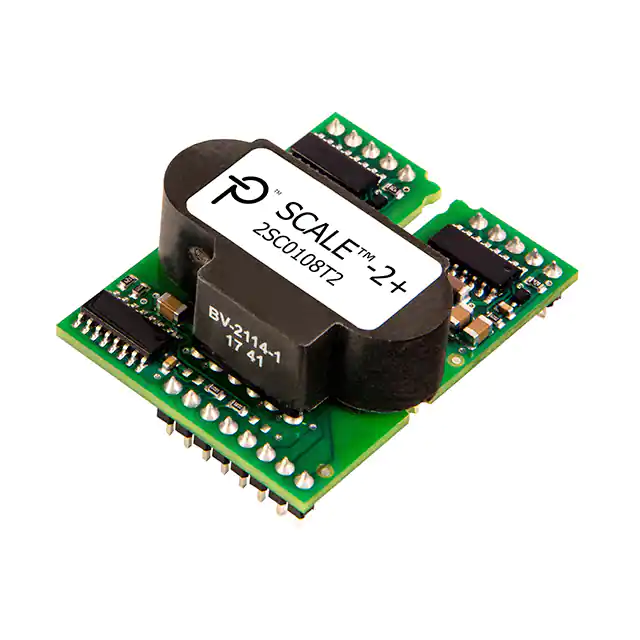

2SC0108T2G0-17 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	4,092	56.37	- + RFQ	Datasheet	Tray	SCALE™-2	Active	High-Side or Low-Side	Independent	2	IGBT	14.5V ~ 15.5V	-	8A, 8A	-	1700 V	17ns, 15ns	-40°C ~ 85°C (TA)	Surface Mount
2SC0108T2D0-12 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	4,509	68.23	- + RFQ	Datasheet	Tray	SCALE™-2	Active	High-Side or Low-Side	Independent	2	IGBT	14.5V ~ 15.5V	-	8A, 8A	-	1200 V	17ns, 15ns	-40°C ~ 85°C (TA)	Surface Mount
2SP0115T2B0-12 IC GATE DRVR HALF-BRIDGE MODULE Power Integrations	745	105.00	- + RFQ	Datasheet	Tray	SCALE™-2	Active	Half-Bridge	Independent	2	IGBT	14.5V ~ 15.5V	-	8A, 15A	-	1200 V	5ns, 10ns	-20°C ~ 85°C (TA)	Surface Mount

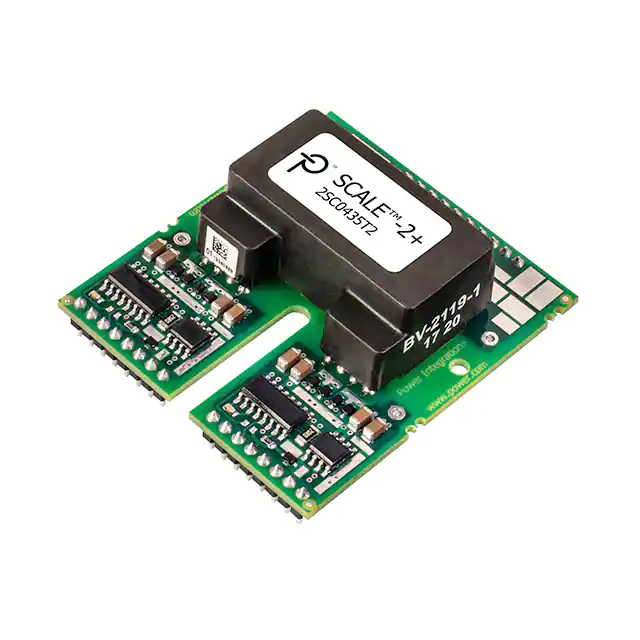

2SC0435T2H0-17 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	881	105.69	- + RFQ	Datasheet	Tray	SCALE™-2	Active	High-Side or Low-Side	Independent	2	IGBT, N-Channel, P-Channel MOSFET	14.5V ~ 15.5V	-	35A, 35A	-	1700 V	20ns, 20ns	-40°C ~ 85°C (TA)	Surface Mount
2SC0435T2F1-17 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	470	105.69	- + RFQ	Datasheet	Tray	SCALE™-2	Active	High-Side or Low-Side	Independent	2	IGBT	14.5V ~ 15.5V	-	35A, 35A	-	1700 V	20ns, 20ns	-40°C ~ 85°C (TA)	Surface Mount

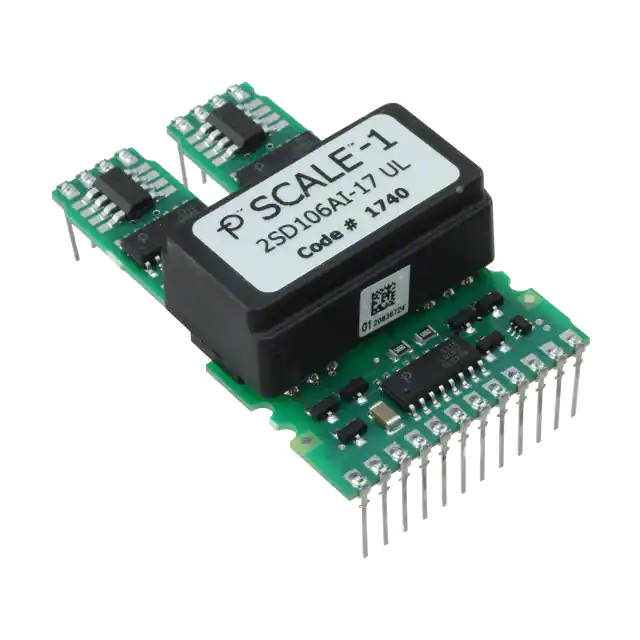

2SD106AI-17 UL IC GATE DRVR HALF-BRIDGE MODULE Power Integrations	806	108.48	- + RFQ	Datasheet	Tray	SCALE™-1	Not For New Designs	Half-Bridge	-	2	IGBT, N-Channel, P-Channel MOSFET	15V	-	6A, 6A	-	-	100ns, 80ns	-40°C ~ 85°C (TA)	Surface Mount

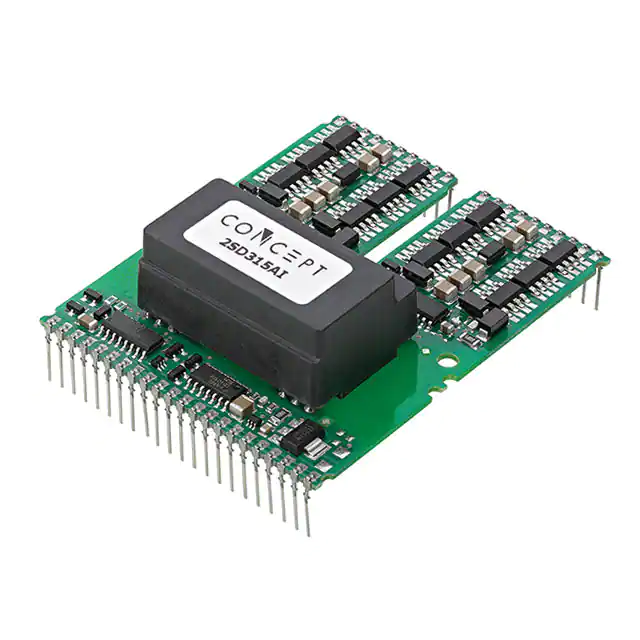

2SD315AI IC GATE DRVR HALF-BRIDGE MODULE Power Integrations	920	118.75	- + RFQ	Datasheet	Tray	SCALE™-1	Active	Half-Bridge	-	2	IGBT, N-Channel, P-Channel MOSFET	-	-	18A, 18A	-	-	160ns, 130ns	-40°C ~ 85°C	Through Hole

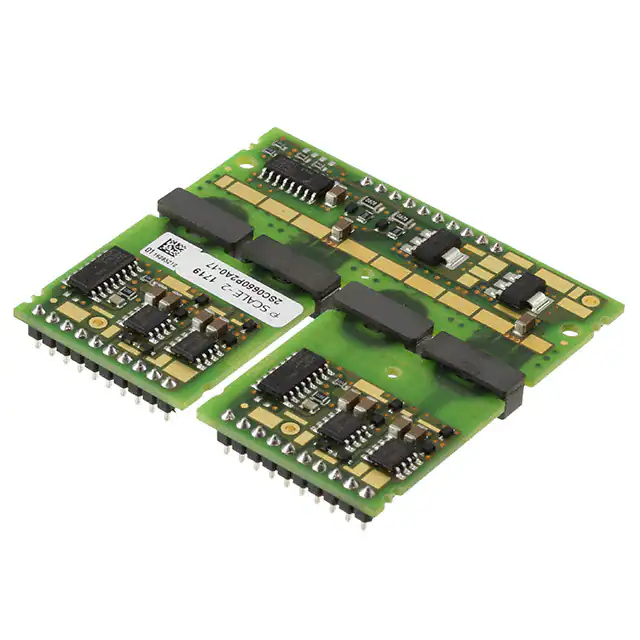

2SC0650P2A0-17 IC GATE DRVR HI/LOW SIDE MODULE Power Integrations	484	178.26	- + RFQ	Datasheet	Bulk	SCALE™-2	Active	High-Side or Low-Side	Independent	2	IGBT	14.5V ~ 15.5V	-	50A, 50A	-	1700 V	25ns, 25ns	-40°C ~ 85°C (TA)	Surface Mount
