Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
LP-10-4800 PWR XFMR SEMI-TORO 48VA TH Signal Transformer	1,270	17.83	- + RFQ	Datasheet	Bulk	LP	Active	Semi-Toroidal	115V, 230V	Parallel 5V, Series 10V	Parallel 9.6A, Series 4.8A	Dual	Dual	No	48VA	Through Hole	PC Pin	79.20mm L x 63.50mm W	34.90mm	1500Vrms
LP-16-3000 PWR XFMR SEMI-TORO 48VA TH Signal Transformer	1,393	17.83	- + RFQ	Datasheet	Bulk	LP	Active	Semi-Toroidal	115V, 230V	Parallel 8V, Series 16V	Parallel 6A, Series 3A	Dual	Dual	No	48VA	Through Hole	PC Pin	79.20mm L x 63.50mm W	34.90mm	1500Vrms
LP-56-850 PWR XFMR SEMI-TORO 48VA TH Signal Transformer	2,157	17.83	- + RFQ	Datasheet	Bulk	LP	Active	Semi-Toroidal	115V, 230V	Parallel 28V, Series 56V	Parallel 1.7A, Series 850mA	Dual	Dual	No	48VA	Through Hole	PC Pin	79.20mm L x 63.50mm W	34.90mm	1500Vrms
FD6-10 PWR XFMR LAMINATED 30VA CHAS MT Triad Magnetics	1,604	18.02	- + RFQ	Datasheet	Bulk,Box	Quick Pack	Active	Laminated Core	115V, 230V	10V	3A	Dual	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	82.55mm L x 42.85mm W	49.20mm	2500VAC
FD6-12 PWR XFMR LAMINATED 30VA CHAS MT Triad Magnetics	4,550	18.02	- + RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	12.6V	2.5A	Dual	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	82.55mm L x 42.85mm W	49.20mm	2500VAC
FD6-20 PWR XFMR LAMINATED 30VA CHAS MT Triad Magnetics	4,940	18.02	- + RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	20V	1.5A	Dual	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	82.55mm L x 42.85mm W	49.20mm	2500VAC
FD6-36 PWR XFMR LAMINATED 30VA CHAS MT Triad Magnetics	2,048	18.02	- + RFQ	Datasheet	Bulk,Box	Quick Pack	Active	Laminated Core	115V, 230V	36V	850mA	Dual	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	82.55mm L x 42.85mm W	49.20mm	2500VAC
FD6-48 PWR XFMR LAMINATED 30VA CHAS MT Triad Magnetics	2,422	18.02	- + RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	48V	630mA	Dual	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	82.55mm L x 42.85mm W	49.20mm	2500VAC
FD6-56 PWR XFMR LAMINATED 30VA CHAS MT Triad Magnetics	4,967	18.02	- + RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V, 230V	56V	540mA	Dual	Single	Yes	30VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	82.55mm L x 42.85mm W	49.20mm	2500VAC
F7-10 PWR XFMR LAMINATED 56VA CHAS MT Triad Magnetics	4,569	18.26	- + RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V	10V	5A	Single	Single	Yes	56VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	93.65mm L x 46.02mm W	57.15mm	2500VAC

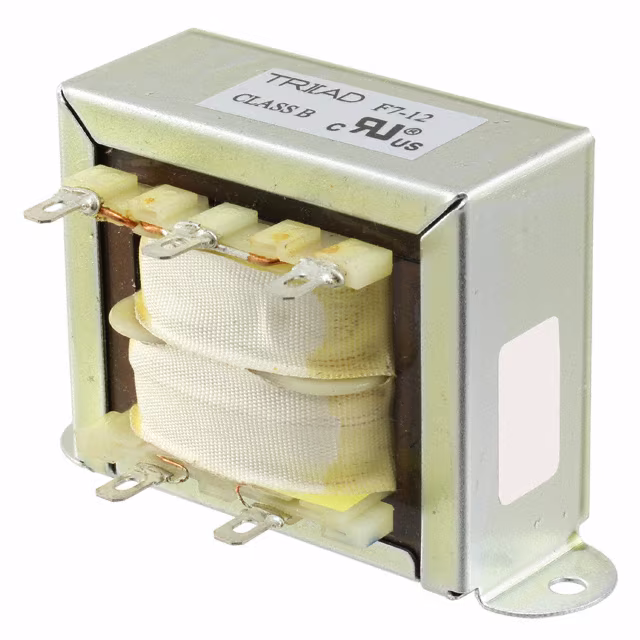

F7-12 PWR XFMR LAMINATED 56VA CHAS MT Triad Magnetics	2,943	18.26	- + RFQ	Datasheet	Bulk,Box	Quick Pack	Active	Laminated Core	115V	12.6V	4A	Single	Single	Yes	56VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	93.65mm L x 46.02mm W	57.15mm	2500VAC

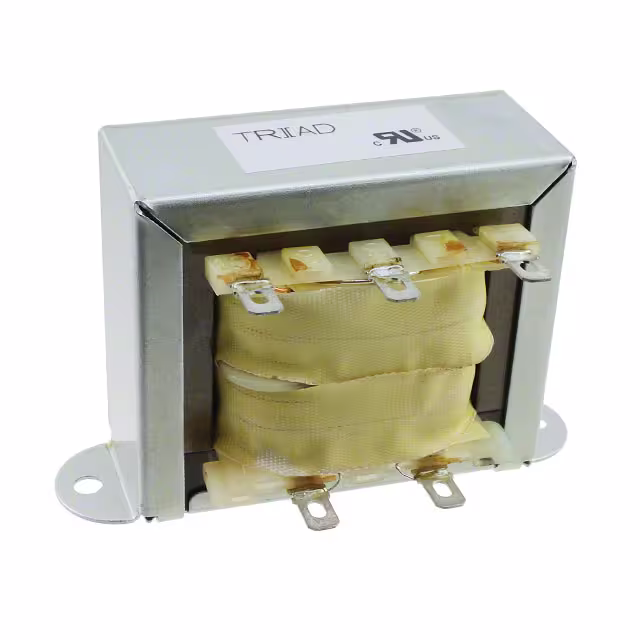

F7-120 PWR XFMR LAMINATED 56VA CHAS MT Triad Magnetics	4,007	18.26	- + RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V	120V	500mA	Single	Single	Yes	56VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	93.65mm L x 46.02mm W	57.15mm	2500VAC
F7-28 PWR XFMR LAMINATED 56VA CHAS MT Triad Magnetics	2,210	18.26	- + RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V	28V	2A	Single	Single	Yes	56VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	93.65mm L x 46.02mm W	57.15mm	2500VAC
F7-36 PWR XFMR LAMINATED 56VA CHAS MT Triad Magnetics	2,029	18.26	- + RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V	36V	1.5A	Single	Single	Yes	56VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	93.65mm L x 46.02mm W	57.15mm	2500VAC
F7-48 PWR XFMR LAMINATED 56VA CHAS MT Triad Magnetics	2,517	18.26	- + RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V	48V	1.2A	Single	Single	Yes	56VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	93.65mm L x 46.02mm W	57.15mm	2500VAC
F7-56 PWR XFMR LAMINATED 56VA CHAS MT Triad Magnetics	1,497	18.26	- + RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V	56V	1A	Single	Single	Yes	56VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	93.65mm L x 46.02mm W	57.15mm	2500VAC
F-326X PWR XFMR LAMINATED 31.5VA CHAS Triad Magnetics	2,937	18.38	- + RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V, 230V	12.6V	2.5A	Dual	Single	Yes	31.5VA	Chassis Mount	Wire Leads	93.65mm L x 50.80mm W	57.94mm	1500Vrms
14A-56-512 PWR XFMR LAMINATED 56VA TH Signal Transformer	1,191	18.48	- + RFQ	Datasheet	Bulk	One-4-All™	Active	Laminated Core	115V, 230V	5V, ±12V	3A, 300mA	Dual	Dual	Yes	56VA	Through Hole	PC Pin	76.20mm L x 63.50mm W	46.00mm	4000Vrms
TCT50-07E07AB PWR XFMR LAMINATED 50VA CHAS MT Triad Magnetics	4,145	18.68	- + RFQ	Datasheet	Box	Class 2, TCT	Active	Laminated Core	120V, 208V, 240V	12V	4.17A	Single, Multiple Taps	Single	No	50VA	Chassis Mount	Solder, Quick Connect	92.46mm L x 56.67mm W	57.00mm	1500Vrms
TCT50-01E07AE PWR XFMR LAMINATED 50VA CHAS MT Triad Magnetics	4,153	18.68	- + RFQ	Datasheet	Box	Class 2, TCT	Active	Laminated Core	120V	24V	2.08A	Single	Single	No	50VA	Chassis Mount	Solder, Quick Connect	92.46mm L x 56.67mm W	57.40mm	1500Vrms
