Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
A41-80-10L PWR XFMR LAMINATED 80VA CHAS MT Signal Transformer	1,709	25.88	- + RFQ	Datasheet	Box	All-4-One™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 16A, Series 8A	Dual	Dual	No	80VA	Chassis Mount	Wire Leads	63.50mm L x 64.30mm W	76.20mm	4000Vrms
A41-80-12L PWR XFMR LAMINATED 80VA CHAS MT Signal Transformer	2,450	25.88	- + RFQ	Datasheet	Box	All-4-One™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 12.6A, Series 6.3A	Dual	Dual	No	80VA	Chassis Mount	Wire Leads	63.50mm L x 64.30mm W	76.20mm	4000Vrms
A41-80-16L PWR XFMR LAMINATED 80VA CHAS MT Signal Transformer	2,122	25.88	- + RFQ	Datasheet	Box	All-4-One™	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 10A, Series 5A	Dual	Dual	No	80VA	Chassis Mount	Wire Leads	63.50mm L x 64.30mm W	76.20mm	4000Vrms
A41-80-28L PWR XFMR LAMINATED 80VA CHAS MT Signal Transformer	2,261	25.88	- + RFQ	Datasheet	Box	All-4-One™	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 5.6A, Series 2.8A	Dual	Dual	No	80VA	Chassis Mount	Wire Leads	63.50mm L x 64.30mm W	76.20mm	4000Vrms
DP-241-8-12L PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	3,939	25.98	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	12.6V	8A	Dual	Single	Yes	100VA	Chassis Mount	Wire Leads	102.40mm L x 58.50mm W	67.70mm	2500Vrms
DP-241-8-16L PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	3,911	25.98	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	16V	6.25A	Dual	Single	Yes	100VA	Chassis Mount	Wire Leads	102.40mm L x 58.50mm W	67.70mm	2500Vrms
DP-241-8-20L PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	2,741	25.98	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	20V	5A	Dual	Single	Yes	100VA	Chassis Mount	Wire Leads	102.40mm L x 58.50mm W	67.70mm	2500Vrms
DP-241-8-28L PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	4,973	25.98	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	28V	3.6A	Dual	Single	Yes	100VA	Chassis Mount	Wire Leads	102.40mm L x 58.50mm W	67.70mm	2500Vrms
DP-241-8-36L PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	3,640	25.98	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	36V	2.8A	Dual	Single	Yes	100VA	Chassis Mount	Wire Leads	102.40mm L x 58.50mm W	67.70mm	2500Vrms
DP-241-8-48L PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	2,283	25.98	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	48V	2A	Dual	Single	Yes	100VA	Chassis Mount	Wire Leads	102.40mm L x 58.50mm W	67.70mm	2500Vrms
DP-241-8-56L PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	3,494	25.98	- + RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	56V	1.8A	Dual	Single	Yes	100VA	Chassis Mount	Wire Leads	102.40mm L x 58.50mm W	67.70mm	2500Vrms

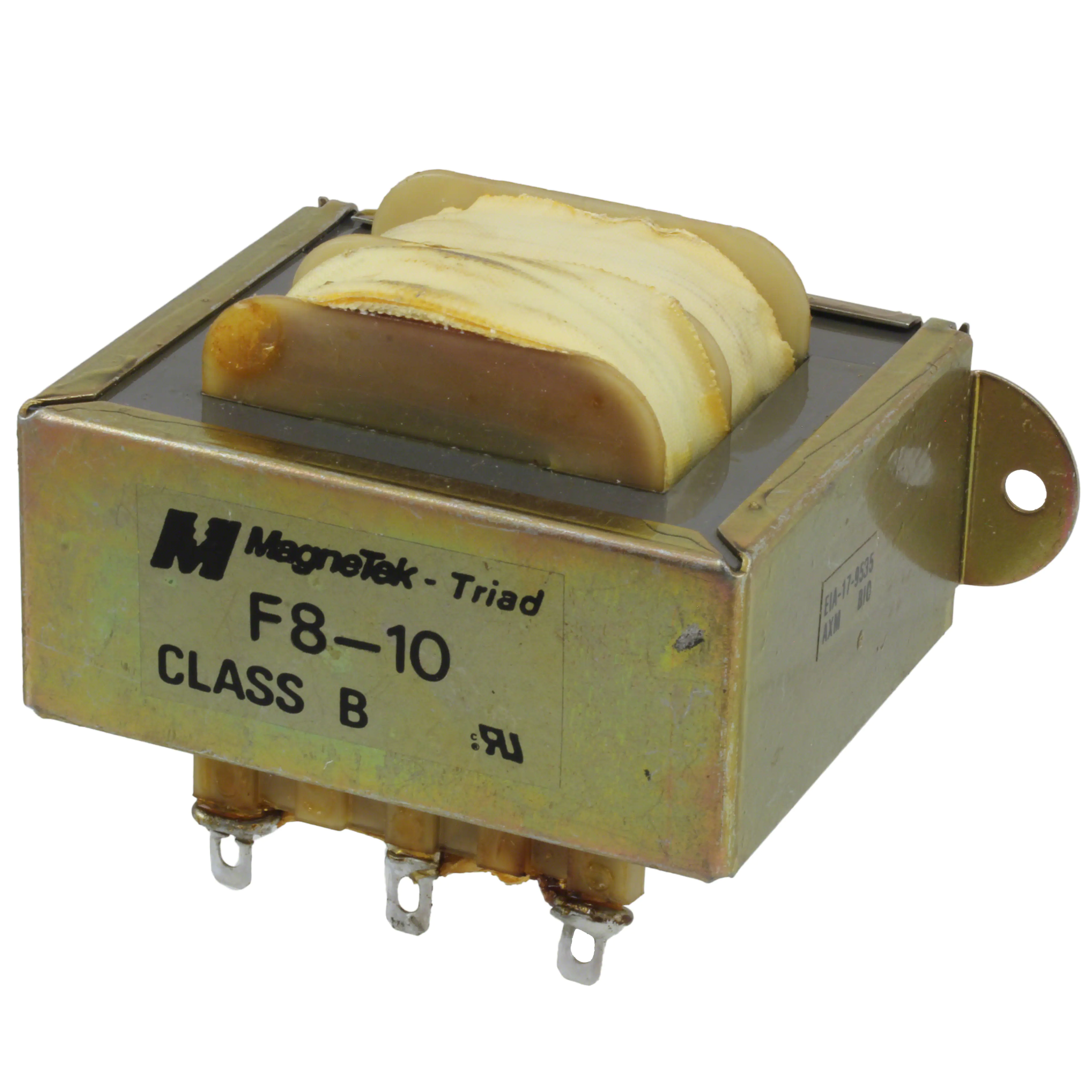

F8-10 PWR XFMR LAMINATED 100VA CHAS MT Triad Magnetics	1,622	26.06	- + RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V	10V	10A	Single	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	102.39mm L x 57.15mm W	65.07mm	2500VAC
F8-120 PWR XFMR LAMINATED 100VA CHAS MT Triad Magnetics	4,627	26.06	- + RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V	120V	850mA	Single	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	102.39mm L x 57.15mm W	65.07mm	2500VAC

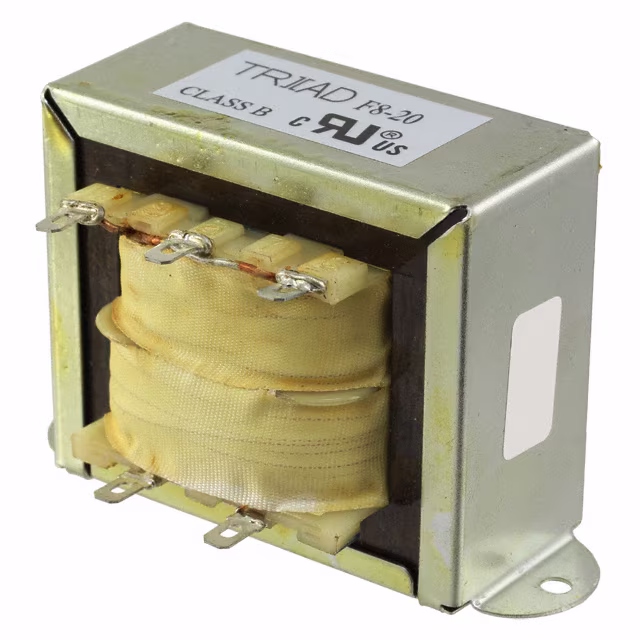

F8-20 PWR XFMR LAMINATED 100VA CHAS MT Triad Magnetics	1,271	26.06	- + RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V	20V	5A	Single	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	102.39mm L x 57.15mm W	65.07mm	2500VAC
F8-48 PWR XFMR LAMINATED 100VA CHAS MT Triad Magnetics	3,476	26.06	- + RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V	48V	2A	Single	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	102.39mm L x 57.15mm W	65.07mm	2500VAC
A41-80-230L PWR XFMR LAMINATED 80VA CHAS MT Signal Transformer	4,566	26.10	- + RFQ	Datasheet	Box	All-4-One™	Active	Laminated Core	115V, 230V	Parallel 115V, Series 230V	Parallel 700mA, Series 350mA	Dual	Dual	No	80VA	Chassis Mount	Wire Leads	63.50mm L x 64.30mm W	76.20mm	4000Vrms
A41-80-36L PWR XFMR LAMINATED 80VA CHAS MT Signal Transformer	3,401	26.10	- + RFQ	Datasheet	Box	All-4-One™	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 4.4A, Series 2.2A	Dual	Dual	No	80VA	Chassis Mount	Wire Leads	63.50mm L x 64.30mm W	76.20mm	4000Vrms
VPS10-8000 PWR XFMR LAMINATED 80VA CHAS MT Triad Magnetics	2,310	26.28	- + RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 16A, Series 8A	Dual	Dual	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 58.67mm W	76.20mm	4000Vrms
VPS12-6300-B PWR XFMR LAMINATED 80VA CHAS MT Triad Magnetics	4,348	26.28	- + RFQ	Datasheet	Bulk	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 12.6A, Series 6.3A	Dual	Dual	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 58.67mm W	76.20mm	4000Vrms
VPS16-5000-B PWR XFMR LAMINATED 80VA CHAS MT Triad Magnetics	1,810	26.28	- + RFQ	Datasheet	Bulk	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 10A, Series 5A	Dual	Dual	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 58.67mm W	76.20mm	4000Vrms
