Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
QC1553-22 TRANSFORMER PBC iNRCORE, LLC	3,808	33.82	- + RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1CT:1.41CT	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
QC1553-24 TRANSFORMER PBC iNRCORE, LLC	4,500	34.39	- + RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1CT:2CT	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
QC1553-25 TRANSFORMER PBC iNRCORE, LLC	2,075	34.39	- + RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1CT:1.5CT	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
QC1553-21 TRANSFORMER PBC iNRCORE, LLC	3,877	34.42	- + RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1CT:1CT	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
X-1644 MDL SIN 100D 1:1 SMT OH PBC iNRCORE, LLC	4,161	34.53	- + RFQ	Datasheet	Tube	*	Active	-	-	-	-	-	-	-
X-1644FNL MDL SIN 100D 1:1 SMT OH NPB iNRCORE, LLC	4,173	34.53	- + RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.600 L x 0.500 W (15.24mm x 12.70mm)	0.310 (7.87mm)
X-1644NL MDL SIN 100D 1:1 SMT OH NPB iNRCORE, LLC	3,381	34.53	- + RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	-	-	1:1	Surface Mount	0.600 L x 0.600 W (15.24mm x 15.24mm)	0.310 (7.87mm)
T-531SCT XFMR DUAL 531MB MIL PBC iNRCORE, LLC	3,389	34.58	- + RFQ	Datasheet	Tube	-	Active	-	7.5µH	-	1CT:1CT	Surface Mount	0.500 L x 0.290 W (12.70mm x 7.37mm)	0.185 (4.70mm)
Q1553-52 TRANSFORMER PBC iNRCORE, LLC	1,802	34.78	- + RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1CT:2.5CT	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
TQ1553-71 TRANSFORMER 1553-71 PBC iNRCORE, LLC	1,843	35.63	- + RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1CT:3.54CT, 1CT:2.5CT	Through Hole	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)
QC1553-85 TRANSFORMER PBC iNRCORE, LLC	2,811	35.68	- + RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1CT:2.5CT, 1CT:1.79CT	Through Hole	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)
QC1553-1 TRANSFORMER PBC iNRCORE, LLC	3,526	35.79	- + RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1CT:1CT, 1CT:0.707CT	Through Hole	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)
SMQ1553-6 TRANSFORMER PBC iNRCORE, LLC	4,195	35.91	- + RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1CT:1CT, 1CT:0.707CT	Surface Mount	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)
QC1553-2 TRANSFORMER PBC iNRCORE, LLC	1,400	36.04	- + RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1.4CT:1CT, 2CT:1CT	Through Hole	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)

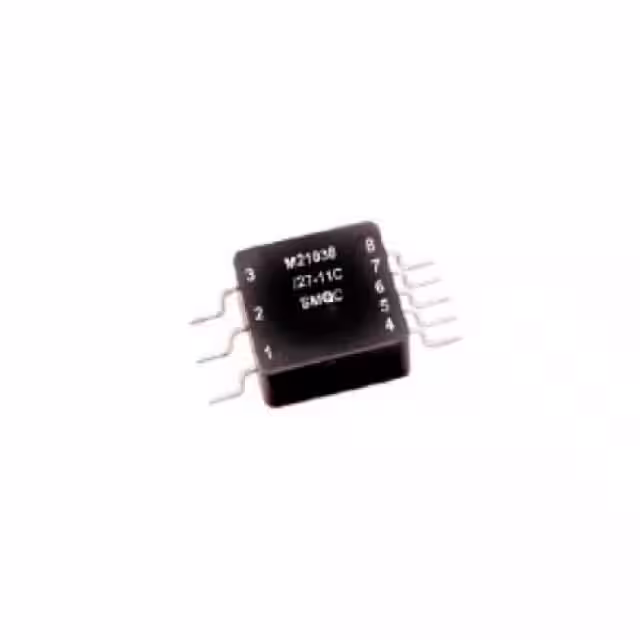

SMQC1553-6 TRANSFORMER PULSE DUAL RATIO iNRCORE, LLC	1,416	36.17	- + RFQ	Datasheet	Bulk	-	Active	Interface, MIL-STD-1553	-	-	1CT:1CT, 1CT:0.707CT	Surface Mount	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)
QC1553-52 TRANSFORMER PBC iNRCORE, LLC	1,879	36.46	- + RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1CT:2.5CT	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
Q1553-5 TRANSFORMER PBC iNRCORE, LLC	4,150	36.54	- + RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1CT:2.12CT, 1CT:1.5CT	Through Hole	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)
T-1485SCTNL TRANSFORMER 04F09855 MIL RPB iNRCORE, LLC	2,111	36.60	- + RFQ	Datasheet	Tube	-	Active	-	3.75µH	-	1CT:1CT	Surface Mount	0.500 L x 0.290 W (12.70mm x 7.37mm)	0.185 (4.70mm)
QC1553-5 TRANSFORMER PBC iNRCORE, LLC	1,105	36.94	- + RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1CT:2.12CT, 1CT:1.5CT	Through Hole	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)

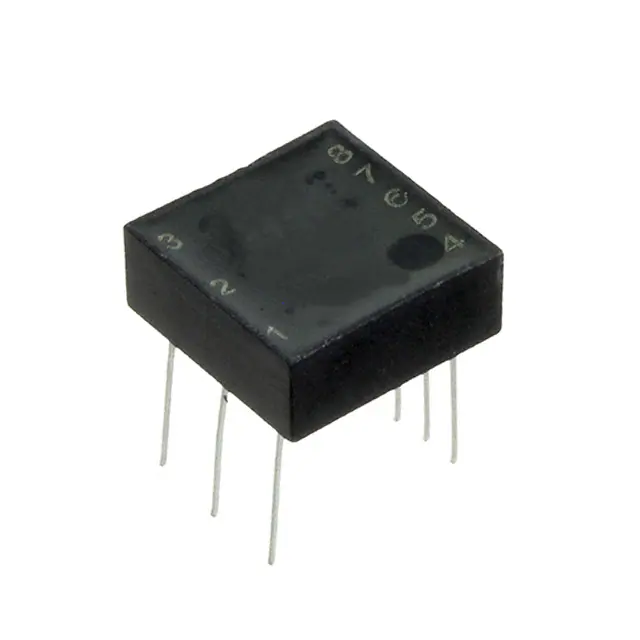

Q1553-70 TRANSFORMER 1553-70 PBC iNRCORE, LLC	2,194	38.12	- + RFQ	Datasheet	Tube	-	Active	MIL-STD-1553	-	-	1CT:3CT, 1CT:2.15CT	Through Hole	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)
