Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
100B-1003X TRANSFORMER 10/100BASE SINGLE iNRCORE, LLC	1,964	15.95	- + RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	-	-	1CT:1CT	Surface Mount	0.500 L x 0.265 W (12.70mm x 6.73mm)	0.245 (6.22mm)
100B-1003XNL XFMR MODULE 100BT SMG COM NPB iNRCORE, LLC	4,513	16.48	- + RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.500 L x 0.265 W (12.70mm x 6.73mm)	0.245 (6.22mm)
IT313 XFRMR PULSE 1:1:1 DL 3MH 1A Schaffner EMC Inc.	3,672	17.05	- + RFQ	Datasheet	Tray	IT	Active	Data/Voice Coupling	3mH	-	1:1:1	Through Hole	1.004 L x 1.004 W (25.50mm x 25.50mm)	0.992 (25.20mm)
GDE25-1 TRANSF .350 OHM SINGL GATE DRIVE Triad Magnetics	3,821	17.31	- + RFQ	Datasheet	Bulk	GDE25	Active	Gate Drive	680µH	540VµS	1:1	Through Hole	1.100 L x 1.040 W (27.94mm x 26.42mm)	1.200 (30.48mm)
GDE25-6 TRANSF 1.75 OHM DUAL GATE DRIVE Triad Magnetics	3,089	17.31	- + RFQ	Datasheet	Bulk	GDE25	Active	Gate Drive	680µH	540VµS	1:1.5:1.5	Through Hole	1.100 L x 1.040 W (27.94mm x 26.42mm)	1.200 (30.48mm)

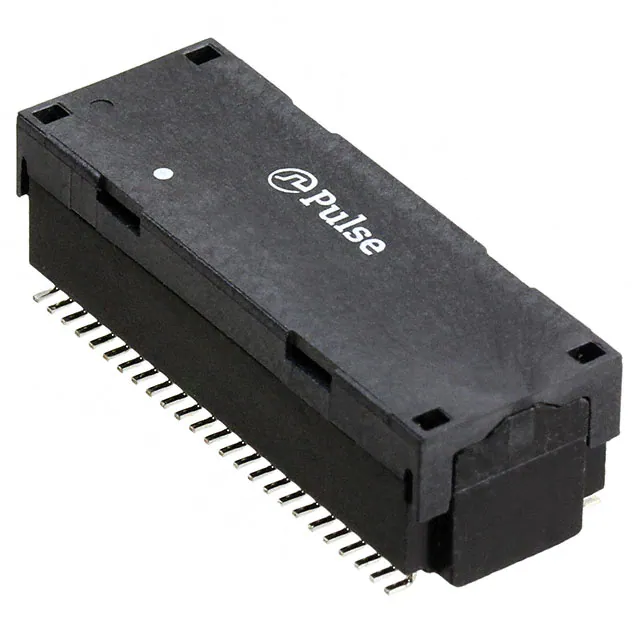

HX5020FNL PULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics Network	2,984	18.05	- + RFQ	Datasheet	Tube	-	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.100 L x 0.395 W (27.94mm x 10.03mm)	0.340 (8.64mm)
H5020NL TRANSFORMER MODULE GIGABIT 2PORT Pulse Electronics Network	4,652	18.38	- + RFQ	Datasheet	Tube	-	Active	Isolation and Data Interface (Encapsulated)	-	-	1CT:1CT	Surface Mount	1.100 L x 0.297 W (27.94mm x 7.54mm)	0.341 (8.66mm)
100B-1001X XFMR MODULE 100BT SMG COM PBC iNRCORE, LLC	1,307	18.42	- + RFQ	Datasheet	Tube	-	Active	LAN 10/100 Base-T	350µH	-	1:1	Surface Mount	0.583 L x 0.470 W (14.81mm x 11.94mm)	0.198 (5.03mm)
1000B-5003FXNLT XFMR MODULE DUAL 1GD SMT PBC iNRCORE, LLC	3,581	33.24	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	1.100 L x 0.297 W (27.94mm x 7.54mm)	0.341 (8.66mm)
1000B-5001FX XFMR MODULE SNGL 1000BT SMT PBC iNRCORE, LLC	4,986	25.84	- + RFQ	Datasheet	Bulk	-	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.19mm)	0.235 (5.97mm)
1000B-5001FXNL XFMR TCS SNGL 1000BT SMT RPB iNRCORE, LLC	1,187	27.47	- + RFQ	Datasheet	Bulk	-	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	0.690 L x 0.480 W (17.53mm x 12.19mm)	0.235 (5.97mm)
1000B-5003FXNL XFMR MODULE DUAL 1GD SMT PBC iNRCORE, LLC	1,975	38.46	- + RFQ	Datasheet	Bulk	-	Active	LAN 10/100/1000 Base-T	350µH	-	1:1	Surface Mount	1.100 L x 0.297 W (27.94mm x 7.54mm)	0.341 (8.66mm)
T-1485SCT XFMR DUAL 1485M BAUD iNRCORE, LLC	1,316	42.80	- + RFQ	Datasheet	Bulk	Copperhead™	Active	-	-	-	1CT:1CT	Surface Mount	0.500 L x 0.290 W (12.70mm x 7.37mm)	0.180 (4.57mm)
DGL1553-45 TRANSFORMER MODULE INTERFACE iNRCORE, LLC	3,656	86.04	- + RFQ	Datasheet	Tube	-	Active	Interface, MIL-STD-1553	-	-	1CT:2.5CT, 1CT:1.79CT	Surface Mount	0.930 L x 0.630 W (23.62mm x 16.00mm)	0.159 (4.04mm)
ALT4532-171-T001 XFRMR LAN 1CT:1CT 170UH TDK Corporation	8,111	1.52	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	ALT	Not For New Designs	LAN	170µH	-	1CT:1CT	Surface Mount	0.177 L x 0.126 W (4.50mm x 3.20mm)	0.087 (2.20mm)
78602/1MC TRANSFORMER 1:1:1 2000UH 20VUS Murata Power Solutions Inc.	5,023	1.57	- + RFQ	Datasheet	Bulk	786	Not For New Designs	General Purpose	2mH	20VµS	1:1:1	Surface Mount	0.354 L x 0.375 W (9.00mm x 9.52mm)	0.250 (6.35mm)
HCTSM80910BAL-E1 XFRMR POWER 9:10 300UH SMD Bourns Inc.	5,783	3.13	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	HCT	Active	-	300µH	11.0VµS	9:10	Surface Mount	0.598 L x 0.425 W (15.20mm x 10.80mm)	0.256 (6.50mm)
750316928 PUSH-PULL TRANSFORMER EP5 SMT; F Würth Elektronik	8,845	3.31	- + RFQ		Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	Surface Mount	-	0.220 (5.59mm)

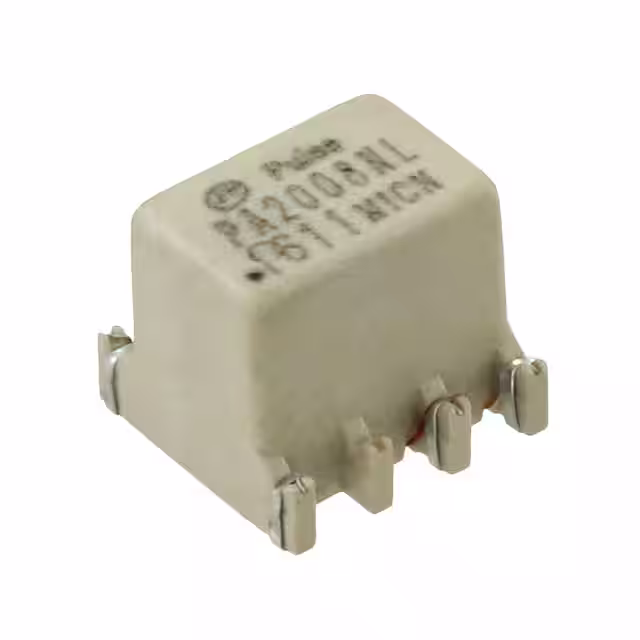

PA2008NL PULSE XFMR 2:1:1 1.43MH Pulse Electronics Power	6,879	3.19	- + RFQ	Datasheet	Tube	-	Active	-	1.43mH	52VµS	2:1:1	Surface Mount	0.355 L x 0.340 W (9.02mm x 8.64mm)	0.300 (7.62mm)

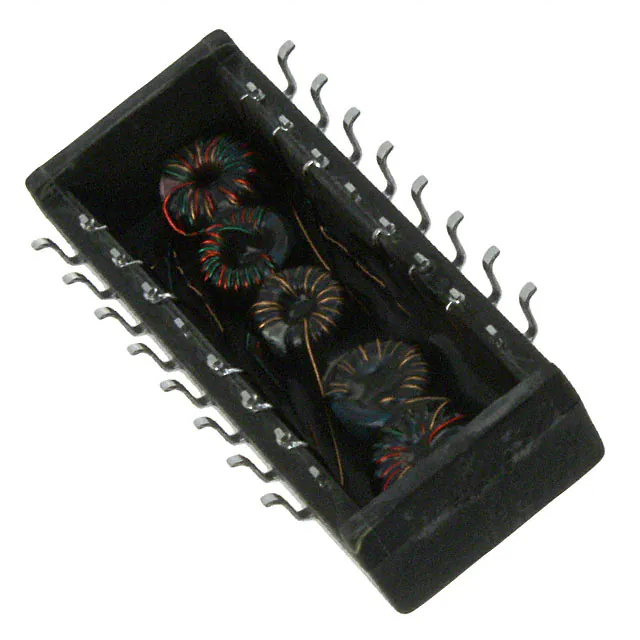

S558-5999-46-F MODULE XFRMR LAN 10/100B-TX SMD Bel Fuse Inc.	7,858	4.10	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	LAN 10/100 Base-T	420µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.000 L x 0.390 W (25.40mm x 9.91mm)	0.235 (5.97mm)
