Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)

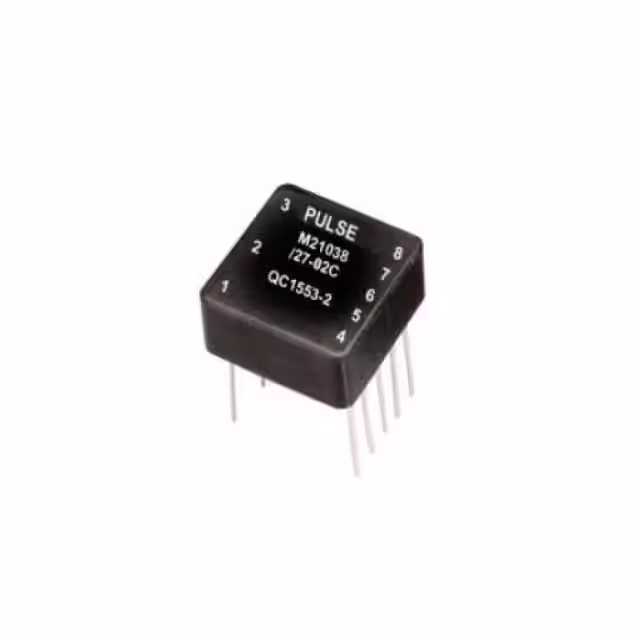

Q1553-2 TRANSFORMER PULSE LVL:M PKG:A iNRCORE, LLC	2,605	34.31	- + RFQ	Datasheet	Bulk	-	Active	Interface, MIL-STD-1553	-	-	1.4CT:1CT, 2CT:1CT	Through Hole	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)
A10GS-4801PS 10G DUAL PORT POE+ Allied Components International	4,986	10.95	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10G Base-T, Power over Ethernet (PoE)	100µH	-	1CT:1CT	Surface Mount	1.303 L x 0.539 W (33.10mm x 13.70mm)	0.299 (7.60mm)

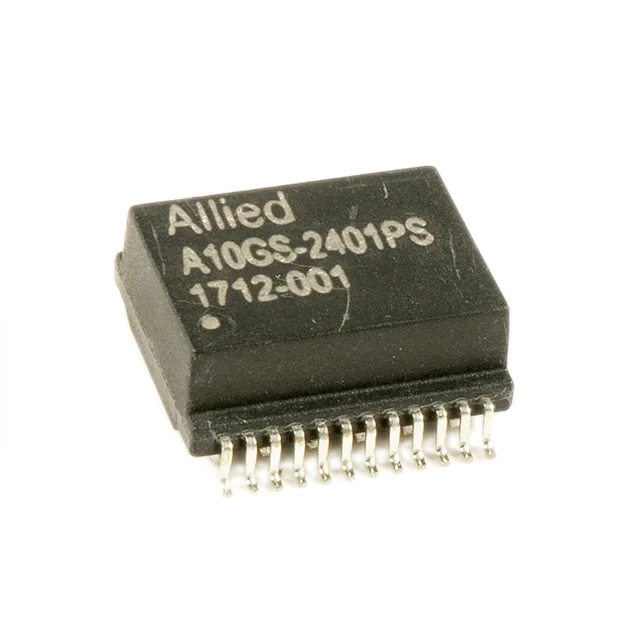

A10GS-2401PS 10G BASE-T POE+ Allied Components International	4,114	10.95	- + RFQ	Datasheet	Tape & Reel (TR)	-	Active	LAN 10G Base-T, Power over Ethernet (PoE)	120µH	-	1CT:1CT	Surface Mount	0.539 L x 0.480 W (13.70mm x 12.20mm)	0.225 (5.72mm)
HX4019NL HX4019NL Pulse Electronics Network	4,615	12.11	- + RFQ		Bulk	*	Active	-	-	-	-	-	-	-

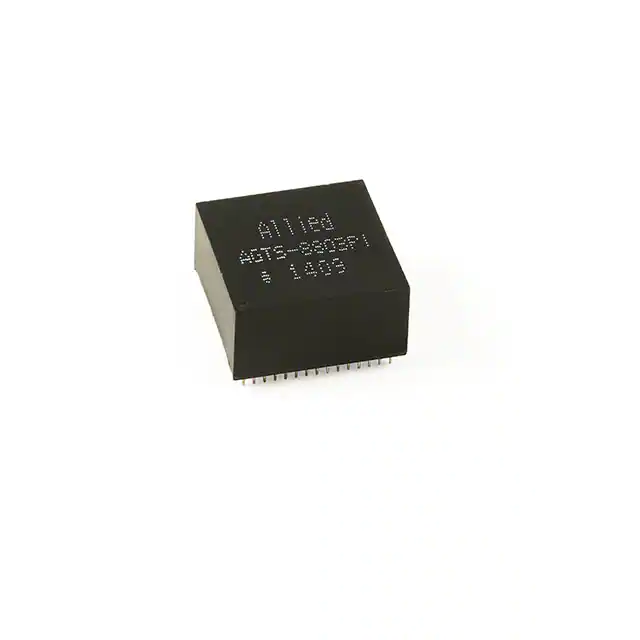

AGTS-8803PI 100/1000 Base T Gigabit Allied Components International	1,731	12.50	- + RFQ	Datasheet	Tube	-	Active	LAN 100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT	Through Hole	1.154 L x 1.146 W (29.30mm x 29.10mm)	0.591 (15.00mm)
HX6080NL TRANSFORMERS 1000BASET SMD POE 3 Pulse Electronics Network	1,809	12.60	- + RFQ		Bulk	*	Active	-	-	-	-	-	-	-
DA102MC-R DIGITAL AUDIO TX 1:1 3MH SMD Murata Power Solutions Inc.	7,715	1.06	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	DA100	Not For New Designs	-	3.9mH	20VµS	1:1	Surface Mount	0.354 L x 0.375 W (9.00mm x 9.52mm)	0.250 (6.35mm)
78601/9JC-R PULSE XFMR 1:1 10MH Murata Power Solutions Inc.	7,147	2.79	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	786J	Active	General Purpose	10mH	56VµS	1:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78602/1JC-R PULSE XFMR 1:1:1 1.89MH Murata Power Solutions Inc.	7,592	2.79	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	786J	Active	General Purpose	1.89mH	20VµS	1:1:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78613/9JC-R PULSE XFMR 1CT:1 10MH Murata Power Solutions Inc.	6,518	2.79	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	786J	Active	General Purpose	10mH	56VµS	1CT:1	Surface Mount	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
78601/8C PULSE XFMR 1:1 1MH Murata Power Solutions Inc.	9,814	1.57	- + RFQ	Datasheet	Tube	786	Active	General Purpose	1mH	15VµS	1:1	Through Hole	0.375 L x 0.354 W (9.52mm x 9.00mm)	0.250 (6.35mm)
Q1553-51 TRANSFORMER PBC iNRCORE, LLC	2,855	35.08	- + RFQ	Datasheet	Bulk	-	Active	MIL-STD-1553	-	-	1CT:1.79CT	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
Q1553-24 TRANSFORMER PBC iNRCORE, LLC	3,850	36.71	- + RFQ	Datasheet	Bulk	-	Active	MIL-STD-1553	-	-	1CT:2CT	Through Hole	0.500 L x 0.350 W (12.70mm x 8.89mm)	0.250 (6.35mm)
SMQ1553-7 TRANSFORMER PULSE DUAL RATIO iNRCORE, LLC	1,683	39.41	- + RFQ	Datasheet	Bulk	-	Active	Interface, MIL-STD-1553	-	-	1.4CT:1CT, 2CT:1CT	Surface Mount	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)
SMQC1553-45 TRANSFORMER PULSE DUAL RATIO iNRCORE, LLC	3,865	41.21	- + RFQ	Datasheet	Bulk	-	Active	Interface, MIL-STD-1553	-	-	1CT:2.5CT, 1CT:1.79CT	Surface Mount	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)

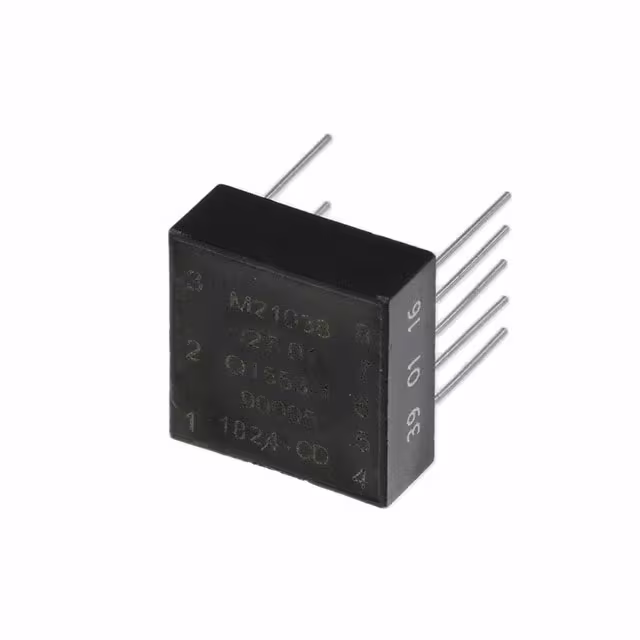

Q1553-1 TRANSFORMER PBC iNRCORE, LLC	1,277	41.95	- + RFQ	Datasheet	Bulk	-	Active	MIL-STD-1553	-	-	1CT:1CT, 1CT:0.707CT	Through Hole	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)

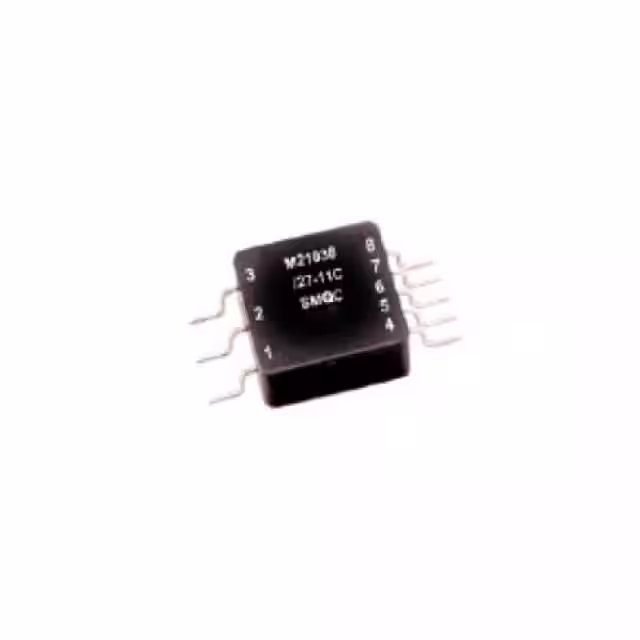

SMQ1553-45 TRANSFORMER PULSE DUAL RATIO iNRCORE, LLC	1,789	53.66	- + RFQ	Datasheet	Bulk	-	Active	Interface, MIL-STD-1553	-	-	1CT:2.5CT, 1CT:1.79CT	Surface Mount	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)

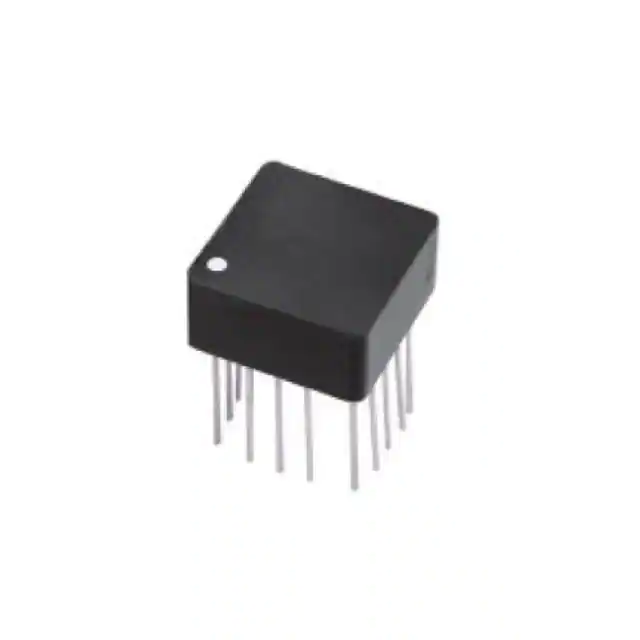

STQ1553-45 TRANSFORMER DUAL STACKED M PBC iNRCORE, LLC	4,114	88.52	- + RFQ	Datasheet	Tray	-	Active	Interface, MIL-STD-1553	-	-	1CT:2.5CT, 1CT:1.79CT	Surface Mount	0.630 L x 0.630 W (16.00mm x 16.00mm)	0.340 (8.64mm)
SMQT1553-45 TRANSFORMER PULSE DUAL RATIO iNRCORE, LLC	2,205	89.10	- + RFQ	Datasheet	Bulk	-	Active	Interface, MIL-STD-1553	-	-	1CT:2.5CT, 1CT:1.79CT	Surface Mount	0.624 L x 0.624 W (15.86mm x 15.86mm)	0.250 (6.35mm)
33818 TRANSF ADSL F/TI 5000 EP13 THD Schott Corporation	9,518	1.85	- + RFQ		Bulk	-	Discontinued at Mosen	ADSL	-	-	-	Through Hole	0.560 L x 0.560 W (14.22mm x 14.22mm)	0.500 (12.70mm)
