Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)
CT-1150 CURR SENSE XFMR 150A T/H Amgis, LLC	2,403	13.66	- + RFQ	Datasheet	Tray	CT	Active	50/60Hz	Non-Invasive (Solid Core)	150 A	-	-	-	1000:1	11Ohm	-	Through Hole	2.189 L x 0.811 W (55.60mm x 20.60mm)	2.189 (55.60mm)
CR8449-2000 CURR SENSE XFMR 75A IN-LINE CR Magnetics Inc.	1,466	13.84	- + RFQ	Datasheet	Bulk	CR8400	Active	20Hz ~ 200kHz	Non-Invasive (Solid Core)	75 A	-	-	-	2000:1	150Ohm	-	Free Hanging (In-Line)	1.252 L x 1.024 W (31.80mm x 26.00mm)	0.669 (17.00mm)
CT-1200 CURR SENSE XFMR 200A T/H Amgis, LLC	3,122	14.82	- + RFQ	Datasheet	Tray	CT	Active	50/60Hz	Non-Invasive (Solid Core)	200 A	-	-	-	1000:1	11Ohm	-	Through Hole	2.189 L x 0.811 W (55.60mm x 20.60mm)	2.189 (55.60mm)
CR8349-1000 CURR SENSE XFMR 50A T/H CR Magnetics Inc.	2,212	15.47	- + RFQ	Datasheet	Bulk	CR8300	Active	20Hz ~ 200kHz	Non-Invasive (Solid Core)	50 A	-	-	-	1000:1	35Ohm	-	Through Hole	1.024 L x 0.670 W (26.00mm x 17.00mm)	1.102 (28.00mm)
CR8449-2500-N CURR SENSE XFMR 50A IN-LINE CR Magnetics Inc.	4,693	15.67	- + RFQ	Datasheet	Bulk	CR8400	Active	20Hz ~ 200kHz	Non-Invasive (Solid Core)	50 A	-	-	-	2500:1	187Ohm	-	Free Hanging (In-Line)	1.252 L x 1.024 W (31.80mm x 26.00mm)	0.669 (17.00mm)
CR2550-W CURR SENSE XFMR IN-LINE CR Magnetics Inc.	3,829	17.67	- + RFQ	Datasheet	Bulk	CR2550	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	1.094 L x 0.866 W (27.80mm x 22.00mm)	-
CR8350-2000-F CURR SENSE XFMR 100A T/H CR Magnetics Inc.	4,068	16.53	- + RFQ	Datasheet	Bulk	CR8300	Active	20Hz ~ 1kHz	Non-Invasive (Solid Core)	100 A	-	-	-	2000:1	73Ohm	-	Through Hole	1.476 L x 0.551 W (37.50mm x 14.00mm)	1.535 (39.00mm)
CR8350-1000 CURR SENSE XFMR 100A T/H CR Magnetics Inc.	3,853	16.53	- + RFQ	Datasheet	Bulk	CR8300	Active	20Hz ~ 200kHz	Non-Invasive (Solid Core)	100 A	-	-	-	1000:1	22Ohm	-	Through Hole	1.476 L x 0.551 W (37.50mm x 14.00mm)	1.535 (39.00mm)
CR8450-2000-F CURR SENSE XFMR 100A IN-LINE CR Magnetics Inc.	2,060	16.53	- + RFQ	Datasheet	Bulk	CR8400	Active	20Hz ~ 200kHz	Non-Invasive (Solid Core)	100 A	-	-	-	2000:1	63Ohm	-	Free Hanging (In-Line)	1.700 L x 1.450 W (43.18mm x 36.83mm)	0.550 (13.97mm)
CR8450-2000 CURR SENSE XFMR 200A IN-LINE CR Magnetics Inc.	1,744	16.57	- + RFQ	Datasheet	Bulk	CR8400	Active	20Hz ~ 200kHz	Non-Invasive (Solid Core)	200 A	-	-	-	2000:1	73Ohm	-	Free Hanging (In-Line)	1.700 L x 1.450 W (43.18mm x 36.83mm)	0.550 (13.97mm)

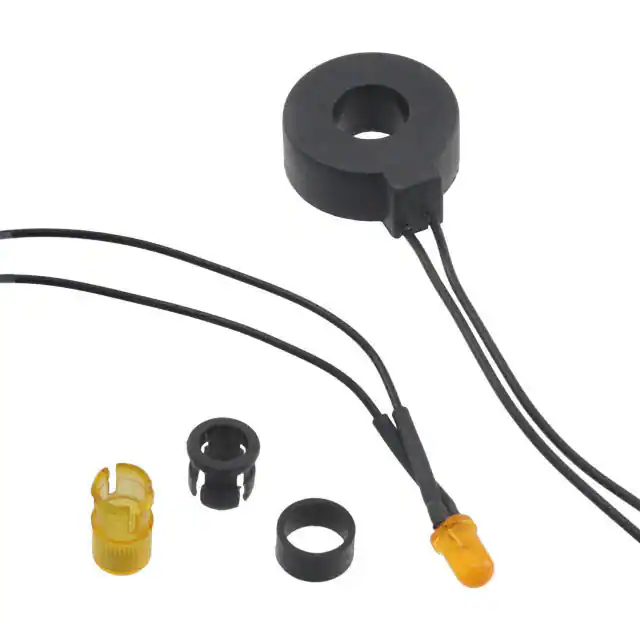

CR2550-A CURR SENSE XFMR IN-LINE CR Magnetics Inc.	1,540	18.18	- + RFQ	Datasheet	Bulk	CR2550	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	1.094 L x 0.866 W (27.80mm x 22.00mm)	-
CR2550-Y CURR SENSE XFMR IN-LINE CR Magnetics Inc.	1,469	18.18	- + RFQ	Datasheet	Bulk	CR2550	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	1.094 L x 0.866 W (27.80mm x 22.00mm)	-

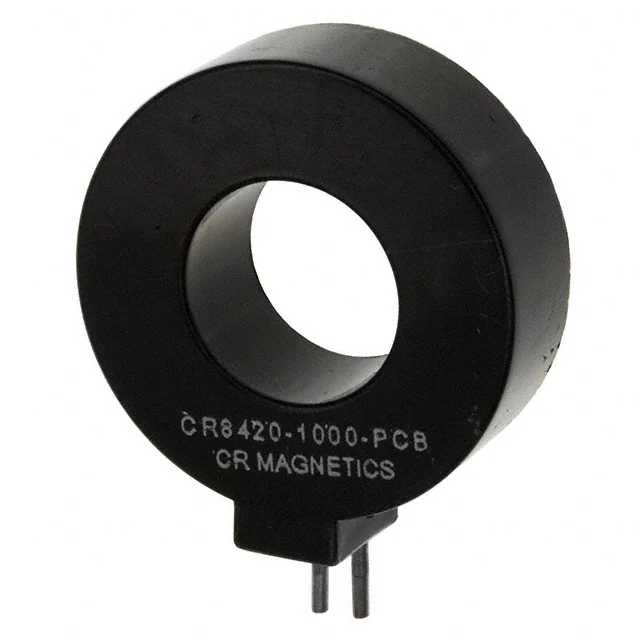

CR8420-1000-PCB CURR SENSE XFMR IN-LINE CR Magnetics Inc.	1,723	16.97	- + RFQ	Datasheet	Bulk	CR8400	Active	20Hz ~ 1kHz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	1.417 L x 1.181 W (36.00mm x 30.00mm)	0.362 (9.20mm)
CR45-R CURR SENSE XFMR PANEL MOUNT CR Magnetics Inc.	3,209	17.29	- + RFQ	Datasheet	Bulk	CR45	Active	50Hz ~ 1kHz	Non-Invasive (Solid Core)	-	-	-	-	-	-	-	Panel Mount	0.949 L x 0.461 W (24.10mm x 11.70mm)	1.039 (26.40mm)
CR8348-2000-D CURR SENSE XFMR 50A T/H CR Magnetics Inc.	1,877	19.21	- + RFQ	Datasheet	Bulk	CR8300	Active	20Hz ~ 200kHz	Non-Invasive (Solid Core)	50 A	-	-	-	2000:1	57Ohm	-	Through Hole	0.925 L x 0.433 W (23.50mm x 11.00mm)	0.984 (25.00mm)
CR8350-2500-N3 TRANSF. CURR. TRIMMED LEADS CR Magnetics Inc.	2,759	19.36	- + RFQ		Bulk	-	Active	20Hz ~ 200kHz	-	-	-	-	-	-	-	-	-	1.476 L x 0.551 W (37.50mm x 14.00mm)	1.535 (39.00mm)
CR8449-2000-F CURR SENSE XFMR 75A IN-LINE CR Magnetics Inc.	3,162	12.89	- + RFQ	Datasheet	Bulk	CR8400	Active	20Hz ~ 200kHz	Non-Invasive (Solid Core)	75 A	-	-	-	2000:1	109Ohm	-	Free Hanging (In-Line)	1.252 L x 1.024 W (31.80mm x 26.00mm)	0.669 (17.00mm)

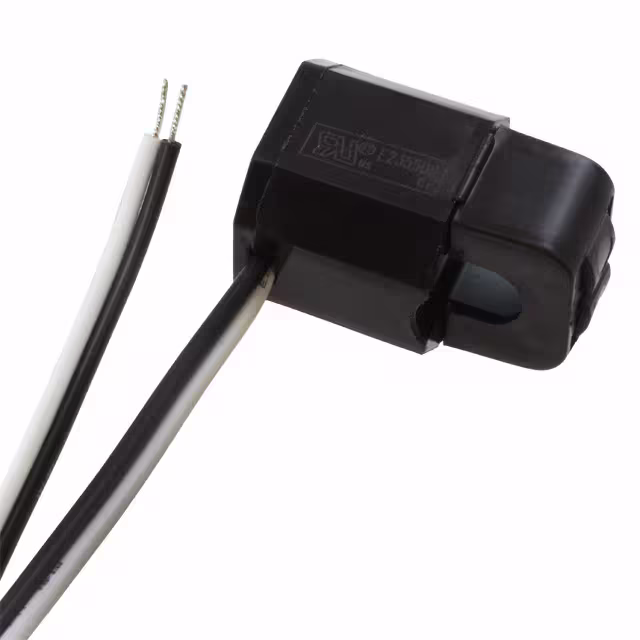

CR3110-3000-72 CURR SENSE XFMR CR Magnetics Inc.	2,537	25.81	- + RFQ		Bulk	-	Active	50/60Hz	-	-	-	-	-	-	-	-	-	1.004 L x 1.043 W (25.50mm x 26.50mm)	1.575 (40.00mm)
CR2SFT-201 CURR SENSE XFMR 200A CHAS MNT CR Magnetics Inc.	2,196	18.89	- + RFQ	Datasheet	Bulk	CR2	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	200 A	-	-	-	200:5	-	-	Chassis Mount	2.681 L x 2.000 W (68.10mm x 44.50mm)	2.681 (68.10mm)
CR2RL-201 CURR SENSE XFMR 200A CR Magnetics Inc.	2,373	18.89	- + RFQ	Datasheet	Bulk	CR2	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	200 A	-	-	-	200:5	-	-	-	2.461 Dia (62.50mm)	1.051 (26.70mm)
