Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)
CR5RL-500 CURR SENSE XFMR 50A IN-LINE CR Magnetics Inc.	1,473	26.54	- + RFQ	Datasheet	Bulk	CR5	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	50 A	-	-	-	50:5	-	-	Free Hanging (In-Line)	3.560 Dia (90.40mm)	1.098 (27.90mm)
CR5RL-101 CURR SENSE XFMR 100A IN-LINE CR Magnetics Inc.	2,357	26.54	- + RFQ	Datasheet	Bulk	CR5	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	100 A	-	-	-	100:5	-	-	Free Hanging (In-Line)	3.560 Dia (90.40mm)	1.098 (27.90mm)
CR8350-2000-D CURR SENSE XFMR 100A T/H CR Magnetics Inc.	2,368	23.07	- + RFQ	Datasheet	Bulk	CR8300	Active	20Hz ~ 1kHz	Non-Invasive (Solid Core)	100 A	-	-	-	2000:1	25Ohm	-	Through Hole	1.476 L x 0.551 W (37.50mm x 14.00mm)	1.535 (39.00mm)

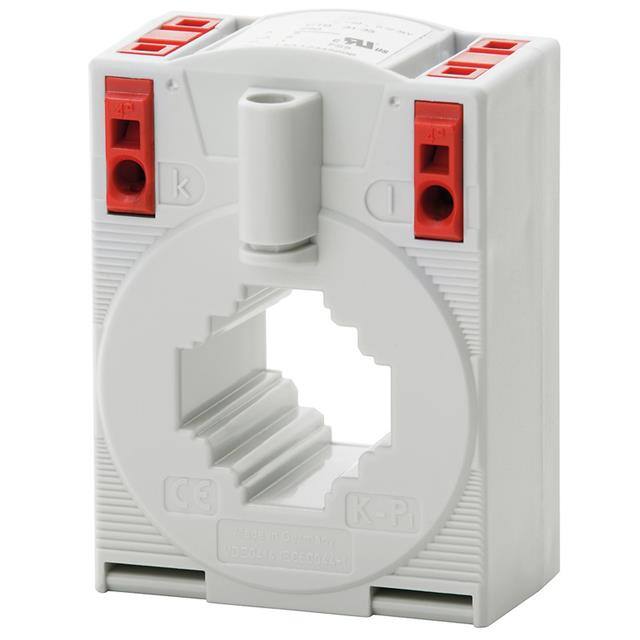

1482040000 CMA-31-75-5A-2 5VA-1 Weidmüller	3,767	23.25	- + RFQ		Bulk	-	Active	-	Non-Invasive (Solid Core)	75 A	-	-	-	-	-	-	DIN Rail	2.362 L x 2.047 W (60.00mm x 52.00mm)	3.185 (80.90mm)
CR5RL-122 CURR SENSE XFMR 1200A IN-LINE CR Magnetics Inc.	2,734	30.63	- + RFQ	Datasheet	Bulk	CR5	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	1200 A	-	-	-	1200:5	-	-	Free Hanging (In-Line)	3.560 Dia (90.40mm)	1.098 (27.90mm)
CR5SFT-122 CURR SENSE XFMR 1200A CHAS MNT CR Magnetics Inc.	1,368	30.63	- + RFQ	Datasheet	Bulk	CR5	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	1200 A	-	-	-	1200:5	-	-	Chassis Mount	3.780 L x 2.150 W (96.00mm x 54.60mm)	3.780 (96.00mm)
CR5SFT-102 CURR SENSE XFMR 1000A CHAS MNT CR Magnetics Inc.	1,639	30.63	- + RFQ	Datasheet	Bulk	CR5	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	1000 A	-	-	-	1000:5	-	-	Chassis Mount	3.780 L x 2.150 W (96.00mm x 54.60mm)	3.780 (96.00mm)
CR5RL-102 CURR SENSE XFMR 1000A IN-LINE CR Magnetics Inc.	3,092	30.63	- + RFQ	Datasheet	Bulk	CR5	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	1000 A	-	-	-	1000:5	-	-	Free Hanging (In-Line)	3.560 Dia (90.40mm)	1.098 (27.90mm)

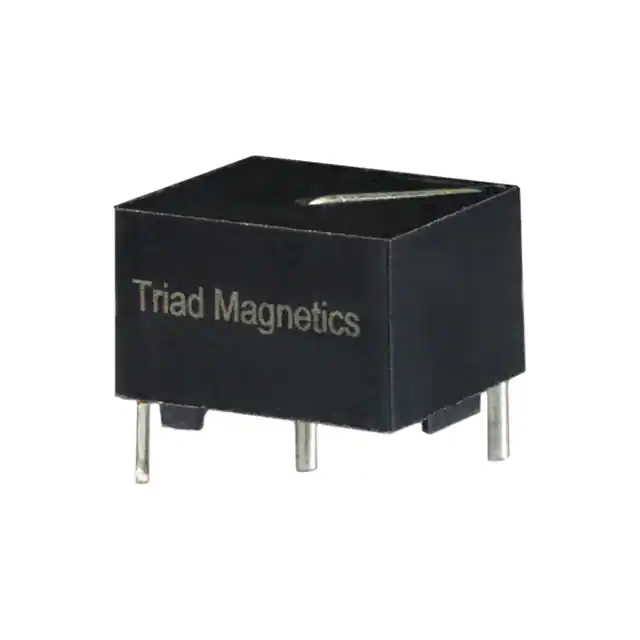

CST25K CST25K - CURRENT SENSE TRANSFORM Triad Magnetics	1,544	32.57	- + RFQ		Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
CR2DARL-101 CURR SENSE XFMR 100A IN-LINE CR Magnetics Inc.	1,443	42.68	- + RFQ	Datasheet	Bulk	CR2DA	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	100 A	-	-	-	100:5	-	-	Free Hanging (In-Line)	2.468 Dia (62.70mm)	1.752 (44.50mm)
CR2DARL-301 CURR SENSE XFMR 300A IN-LINE CR Magnetics Inc.	1,582	42.68	- + RFQ	Datasheet	Bulk	CR2DA	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	300 A	-	-	-	300:5	-	-	Free Hanging (In-Line)	2.468 Dia (62.70mm)	1.752 (44.50mm)
CR2DARL-500 CURR SENSE XFMR 50A IN-LINE CR Magnetics Inc.	2,584	42.68	- + RFQ	Datasheet	Bulk	CR2DA	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	50 A	-	-	-	50:5	-	-	Free Hanging (In-Line)	2.468 Dia (62.70mm)	1.752 (44.50mm)
CR2DARL-151 CURR SENSE XFMR 150A IN-LINE CR Magnetics Inc.	3,174	42.68	- + RFQ	Datasheet	Bulk	CR2DA	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	150 A	-	-	-	150:5	-	-	Free Hanging (In-Line)	2.468 Dia (62.70mm)	1.752 (44.50mm)
C-CT-16 CURR SENSE XFMR 100A IN-LINE Nidec Copal Electronics	3,120	37.56	- + RFQ	Datasheet	Bulk	C-CT	Last Time Buy	10Hz ~ 5kHz	Non-Invasive (Split Core)	100 A	-	-	-	3000:1	-	-	Free Hanging (In-Line)	1.280 L x 1.201 W (32.50mm x 30.50mm)	1.819 (46.20mm)
2277844 CURR SENSE XFMR 150A DIN RAIL Phoenix Contact	1,079	37.96	- + RFQ	Datasheet	Bulk	-	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	150 A	-	-	-	-	-	-	DIN Rail	2.362 L x 1.181 W (60.00mm x 30.00mm)	3.150 (80.00mm)
2277064 CURR SENSE XFMR 1:20 100A DIN RL Phoenix Contact	3,035	39.16	- + RFQ	Datasheet	Bulk	PACT	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	100 A	-	-	-	-	-	-	DIN Rail	2.362 L x 1.181 W (60.00mm x 30.00mm)	3.150 (80.00mm)
2277080 CURR SENSE XFMR 1:50 250A DIN RL Phoenix Contact	2,938	39.16	- + RFQ	Datasheet	Bulk	PACT	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	250 A	-	-	1:50	-	-	-	DIN Rail	2.362 L x 1.181 W (60.00mm x 30.00mm)	3.150 (80.00mm)
CR5ASFT-301 CURR SENSE XFMR 300A CHAS MNT CR Magnetics Inc.	4,583	43.01	- + RFQ	Datasheet	Bulk	CR5A	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	300 A	-	-	-	300:5	-	-	Chassis Mount	-	-
CR5ARL-101 CURR SENSE XFMR 100A IN-LINE CR Magnetics Inc.	1,105	43.01	- + RFQ	Datasheet	Bulk	CR5A	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	100 A	-	-	-	100:5	-	-	Free Hanging (In-Line)	3.560 Dia (90.40mm)	1.098 (27.90mm)
2277022 CURR SENSE XFMR 1:20 100A DIN RL Phoenix Contact	2,776	44.49	- + RFQ	Datasheet	Bulk	PACT	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	100 A	-	-	-	-	-	-	DIN Rail	1.732 L x 1.181 W (44.00mm x 30.00mm)	2.598 (66.00mm)
