Results:

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	FrequencyRange	Type	CurrentRating(Amps)	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	CurrentRatio	DCResistance(DCR)	Ratings	MountingType	Size/Dimension	Height-Seated(Max)
ECST1V0703-1020-R TRANSF CURRENT SENSE 20:1 9A SMD Eaton - Electronics Division	9,605	3.34	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
ECSTA1V0504-1150-R TRANSF CURRENT SENS 150:1 7A SMD Eaton - Electronics Division	5,084	6.26	- + RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
2277161 CURR SENSE XFMR 1:80 400A DIN RL Phoenix Contact	4,030	62.88	- + RFQ	Datasheet	Bulk	PACT	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	400 A	-	-	-	-	-	-	DIN Rail	3.346 L x 1.181 W (85.00mm x 30.00mm)	4.252 (108.00mm)
2277187 CURR SENSE XFMR 1:160 800A DIN Phoenix Contact	3,585	62.88	- + RFQ	Datasheet	Bulk	PACT	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	800 A	-	-	-	-	-	-	DIN Rail	3.346 L x 1.181 W (85.00mm x 30.00mm)	4.252 (108.00mm)
2277190 CURR SENSE XFMR 1:200 1000A DIN Phoenix Contact	4,834	62.88	- + RFQ	Datasheet	Bulk	PACT	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	1000 A	-	-	-	-	-	-	DIN Rail	3.346 L x 1.181 W (85.00mm x 30.00mm)	4.252 (108.00mm)
2277200 CURR SENSE XFMR 1:250 1250A DIN Phoenix Contact	4,416	62.88	- + RFQ	Datasheet	Bulk	PACT	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	1250 A	-	-	-	-	-	-	DIN Rail	3.346 L x 1.181 W (85.00mm x 30.00mm)	4.252 (108.00mm)
2276162 CURR SENSE XFMR 1:120 600A DIN Phoenix Contact	2,579	62.88	- + RFQ	Datasheet	Bulk	PACT	Active	50Hz ~ 60Hz	Non-Invasive (Solid Core)	600 A	-	-	1:120	-	-	-	DIN Rail	3.346 L x 1.181 W (85.00mm x 30.00mm)	4.252 (108.00mm)
CR6ARL-122 CURR SENSE XFMR 1200A IN-LINE CR Magnetics Inc.	504	111.75	- + RFQ	Datasheet	Bulk	CR6A	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	1200 A	-	-	-	1200:5	-	-	Free Hanging (In-Line)	4.079 Dia (103.60mm)	1.098 (27.90mm)
CR6ASFT-122 CURR SENSE XFMR 1200A CHAS MNT CR Magnetics Inc.	524	111.75	- + RFQ	Datasheet	Bulk	CR6A	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	1200 A	-	-	-	1200:5	-	-	Chassis Mount	4.209 L x 2.150 W (106.90mm x 54.60mm)	4.209 (106.90mm)
CR5RBL-201 CURR SENSE XFMR 200A CR Magnetics Inc.	807	101.57	- + RFQ	Datasheet	Bulk	CR2	Active	50Hz ~ 400Hz	Non-Invasive (Solid Core)	200 A	-	-	-	200:5	-	-	-	4.500 L x 1.252 W (114.30mm x 31.80mm)	3.701 (94.00mm)
ENVOY AC-OC (100A) CURR SENSE XFMR 100A IN-LINE Verivolt LLC	2,646	81.60	- + RFQ		Box	-	Active	20Hz ~ 30kHz	Non-Invasive (Split Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	-	-
ENVOY AC-OC (200A) CURR SENSE XFMR 200A IN-LINE Verivolt LLC	4,495	81.60	- + RFQ		Box	-	Active	20Hz ~ 30kHz	Non-Invasive (Split Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	-	-
ENVOY AC-OC (300A) CURR SENSE XFMR 300A IN-LINE Verivolt LLC	1,535	81.60	- + RFQ		Box	-	Active	20Hz ~ 30kHz	Non-Invasive (Split Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	-	-
ENVOY AC-OC (400A) CURR SENSE XFMR 400A IN-LINE Verivolt LLC	1,194	81.60	- + RFQ		Box	-	Active	20Hz ~ 30kHz	Non-Invasive (Split Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	-	-
ENVOY AC-OC (500A) CURR SENSE XFMR 500A IN-LINE Verivolt LLC	4,364	81.60	- + RFQ		Box	-	Active	20Hz ~ 30kHz	Non-Invasive (Split Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	-	-
ENVOY AC-OC (600A) CURR SENSE XFMR 600A IN-LINE Verivolt LLC	1,238	81.60	- + RFQ		Box	-	Active	20Hz ~ 30kHz	Non-Invasive (Split Core)	-	-	-	-	-	-	-	Free Hanging (In-Line)	-	-

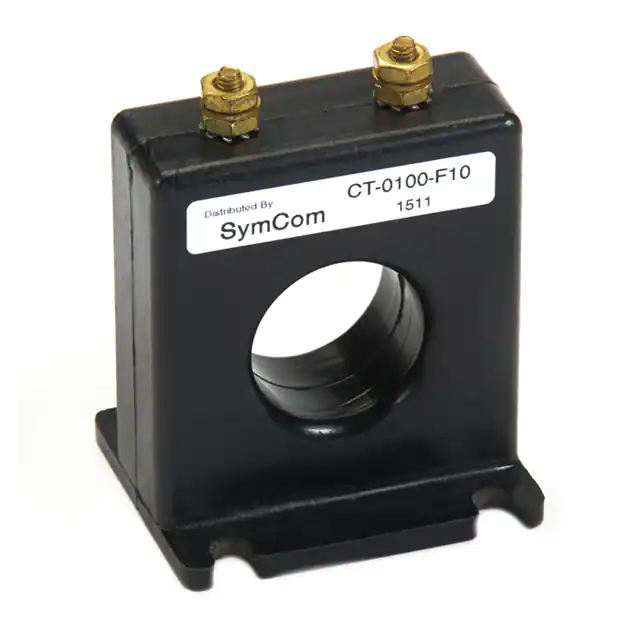

CT-0150-F20 CURR SENSE XFMR 150:5 FOOTED Littelfuse Inc.	4,101	85.07	- + RFQ	Datasheet	Bulk	CT	Active	-	Non-Invasive (Solid Core)	150 A	-	-	-	150:5	-	-	-	-	-
CT-0200-F20 CURR SENSE XFMR 200:5 FOOTED Littelfuse Inc.	3,788	85.07	- + RFQ	Datasheet	Bulk	CT	Active	-	Non-Invasive (Solid Core)	200 A	-	-	-	200:5	-	-	-	-	-
CT-0300-F20 CURR SENSE XFMR 300:5 FOOTED Littelfuse Inc.	1,641	85.07	- + RFQ	Datasheet	Bulk	CT	Active	-	Non-Invasive (Solid Core)	300 A	-	-	-	300:5	-	-	-	-	-
CT-0600-F20 CURR SENSE XFMR 600:5 FOOTED Littelfuse Inc.	3,839	85.07	- + RFQ	Datasheet	Bulk	CT	Active	-	Non-Invasive (Solid Core)	600 A	-	-	-	600:5	-	-	-	-	-
